Joint Assembly (Transaxle Side): Removal

CAUTION:

Drive shaft joints require special grease, so do not add any other type of grease.
When replacing the boot band, it must be a new one.

Remove the front drive shaft.
Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

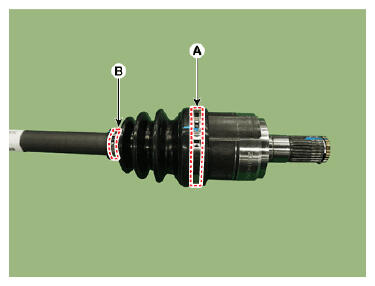

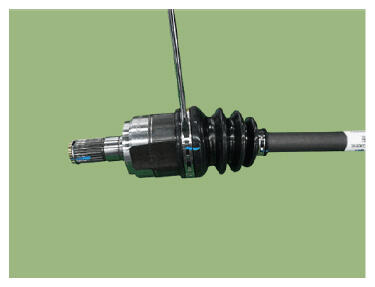

Remove the transaxle side large diameter (A) and small diameter (B) boot bands.

G16854300

Courtesy of HYUNDAI MOTOR AMERICA

Information

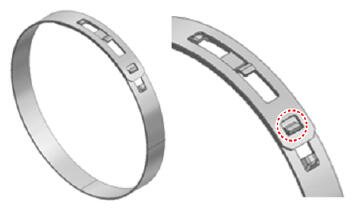

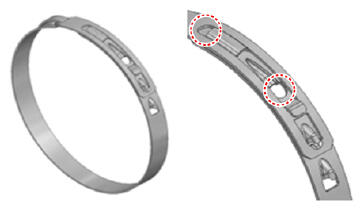

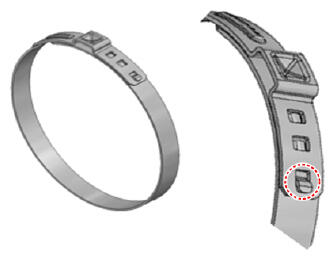

Use the right tool for each type of boot band as shown in the table below.

Ear type	Hook type	Hook type [Low profile]
Driver (-)	Driver (-)	SST (0K495-2W000)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

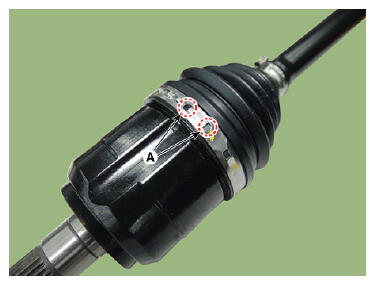

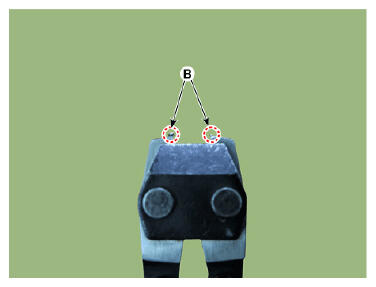

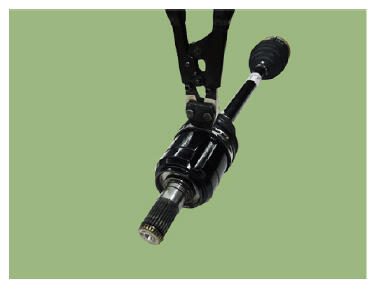

When using the low profile hook type boot band, fit the SST tip (B) into the boot band hole (A) as shown in illustration below.

G16854307

Courtesy of HYUNDAI MOTOR AMERICA

G16854308

Courtesy of HYUNDAI MOTOR AMERICA

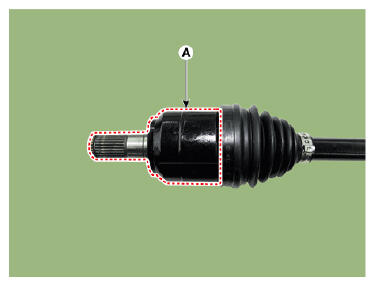

Remove the transaxle joint housing (A).

Courtesy of HYUNDAI MOTOR AMERICA

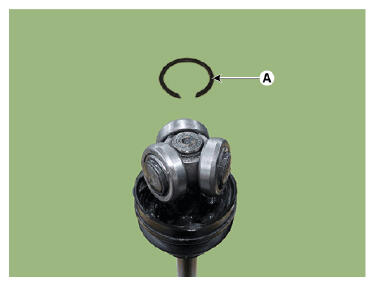

Remove the snap ring (A) using a snap ring pliers.

Courtesy of HYUNDAI MOTOR AMERICA

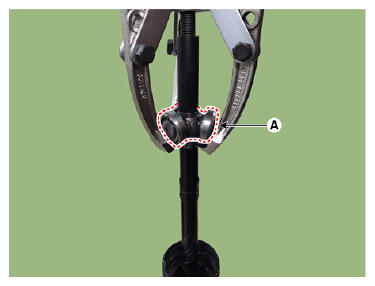

Remove the spider assembly (A) from the drive shaft using a puller.

Courtesy of HYUNDAI MOTOR AMERICA

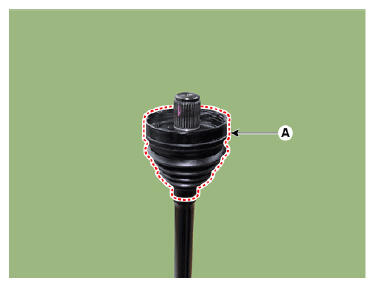

Remove transaxle side boot (A).

Courtesy of HYUNDAI MOTOR AMERICA
Clean the inside of the spider assembly and joint housing.

NOTE:

Remove grease inside the housing as much as possible.
