Dynamic Damper: Removal

  1. Remove the front drive shaft.

    Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")

  2. Remove the transaxle side joint.

    (Refer to Driveshaft Assembly - "JOINT ASSEMBLY (TRANSAXLE SIDE) ")

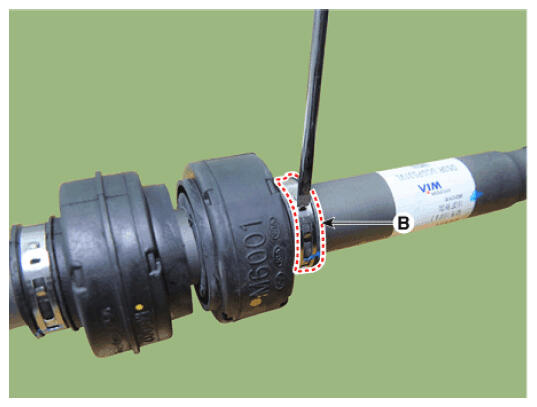

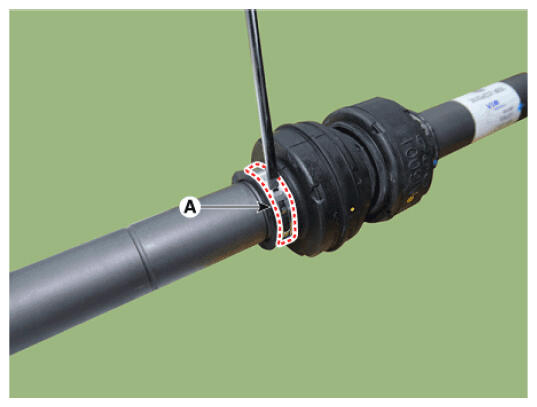

  3. Remove the dynamic damper band (A, B) using driver (-).
    G16854295Courtesy of HYUNDAI MOTOR AMERICA
    G16854296Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the dynamic damper, lubricate the shaft with soapy water to prevent shaft damage.

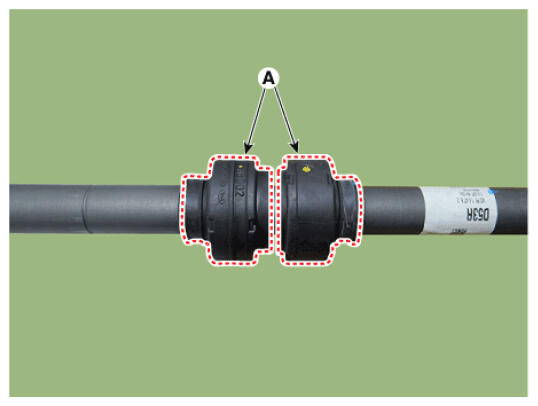

  4. Remove the dynamic damper (A).
G16854297Courtesy of HYUNDAI MOTOR AMERICA
