[EPB Switch]

NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the battery negative (-) terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

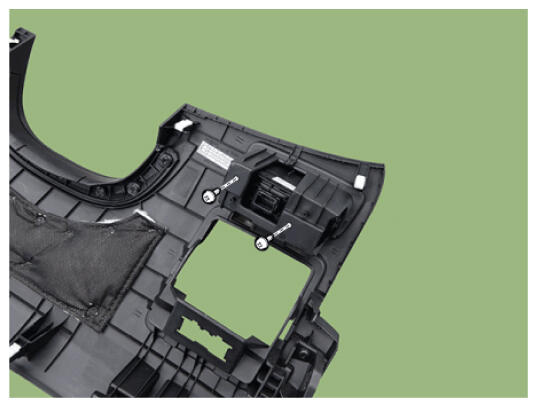

  3. Remove the mounting screws and remove the EPB Switch (A).
    G16855008Courtesy of HYUNDAI MOTOR AMERICA
    G16855009Courtesy of HYUNDAI MOTOR AMERICA
