[EPB Actuator]

Release the EPB, push the EPB switch or using self-diagnosis.
(Refer to Parking Brake System - "ELECTRONIC PARKING BRAKE (EPB) ")
Disconnect the (-) battery terminal.
Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")

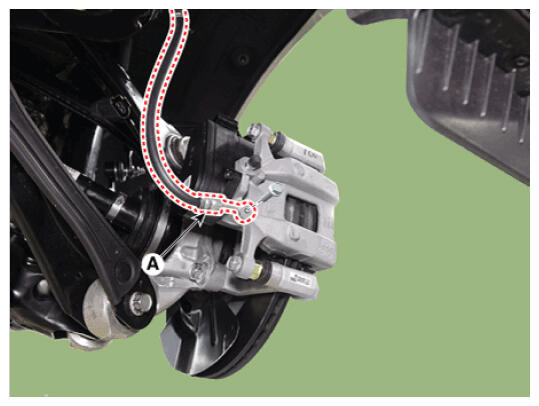

Remove the brake hose (A) after removing the brake hose bolt from the caliper.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb-ft)
NOTE:
- Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
Courtesy of HYUNDAI MOTOR AMERICA

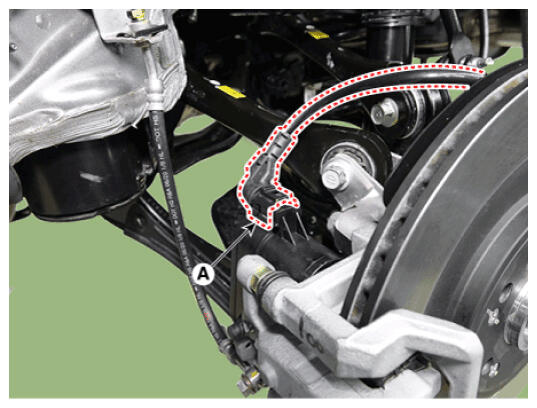

Disconnect the EPB connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

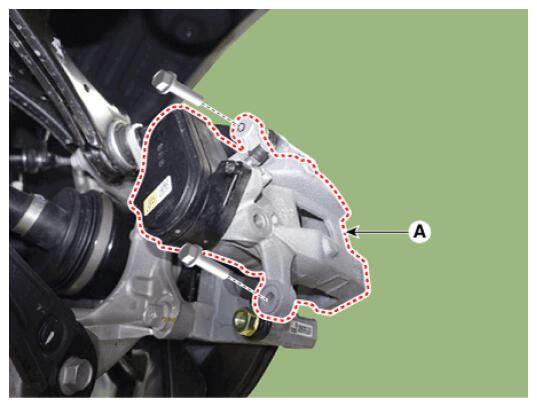

Remove the guide rod bolt and then remove the caliper body (A).
Tightening torque:

37.2 - 41.1 N.m (3.8 - 4.2 kgf.m, 27.4 - 30.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

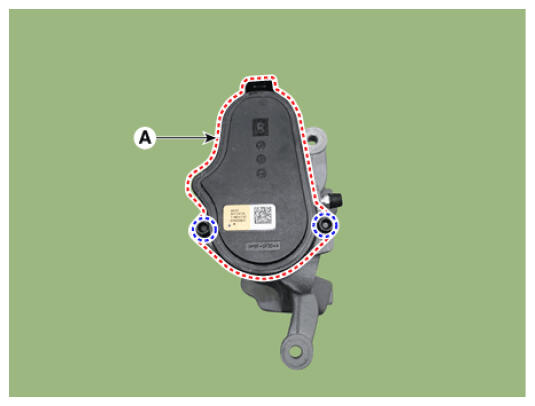

Remove the screws and remove the EPB actuator (A) from the caliper body.
Tightening torque:

7.8 - 10.7 N.m (0.8 - 1.1 kgf.m, 5.7 - 7.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
