Brake Pad Replacement Mode

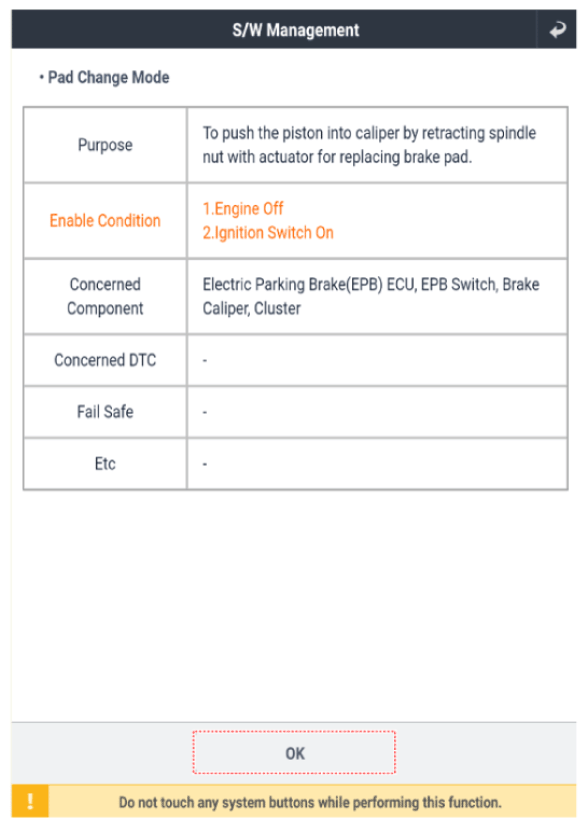

  1. Perform the "Brake Pad Change Mode" using self-diagnosis following the procedure below for vehicles with EPB.
    G16855014Courtesy of HYUNDAI MOTOR AMERICA

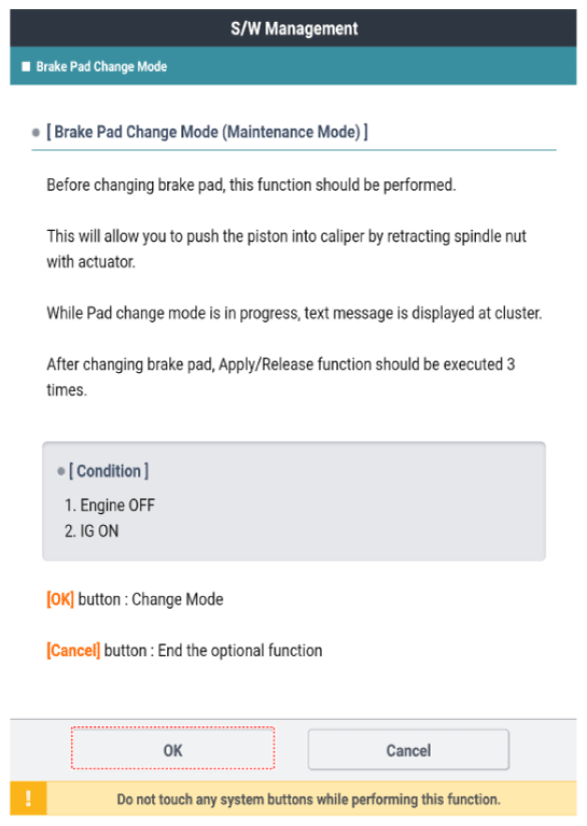

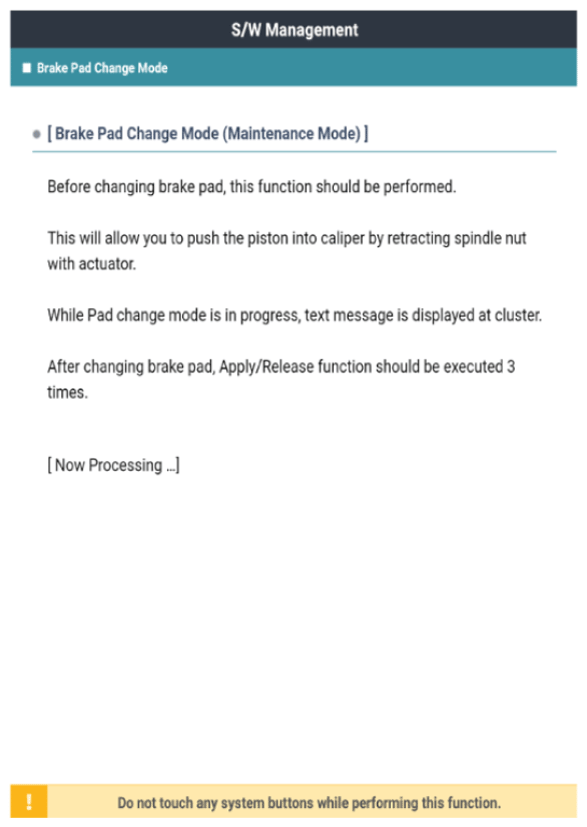

  2. Proceed with the test according to the screen instructions.
    G16855015Courtesy of HYUNDAI MOTOR AMERICA
    G16855016Courtesy of HYUNDAI MOTOR AMERICA
    G16855017Courtesy of HYUNDAI MOTOR AMERICA
    G16855018Courtesy of HYUNDAI MOTOR AMERICA
