Diagnostic tool Data Analysis
- Analyze diagnostic tool data and check for any abnormality with the stop lamp switch.
- Connect the diagnostic tool to the self-diagnosis connector.
- Turn the spark switch on.
- Step on the brake pedal.
- Inspect the "brake switch" category that displays the "sensor data" diagnostic tool.

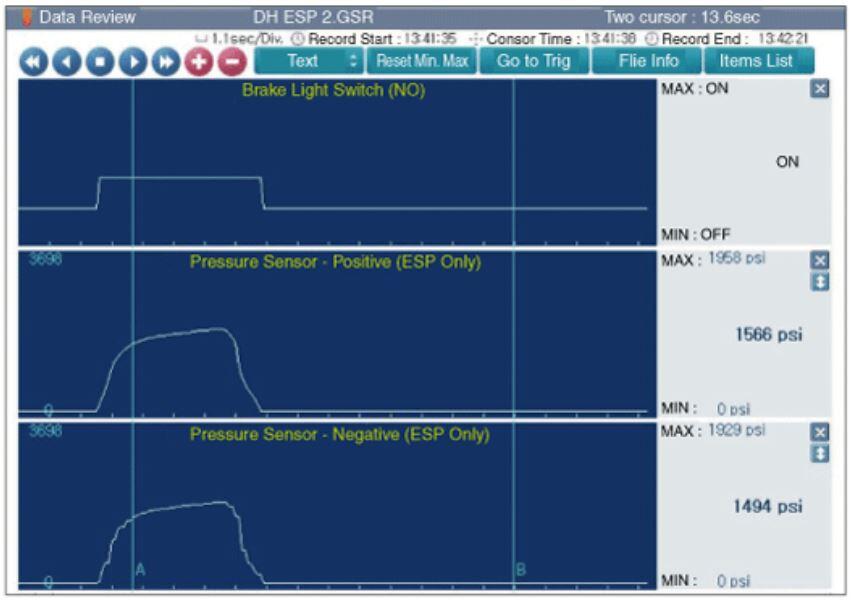

Normal waveform: The pressure sensor signal value will change according to the brake ON/OFF switch.
