Rear Disc Brake: Removal
- Release the EPB, push the EPB switch or using self-diagnosis.
(Refer to Parking Brake System - "ELECTRONIC PARKING BRAKE (EPB) ")
- Disconnect the (-) battery terminal.
- Remove the rear wheel & tire.
(Refer to Suspension System - "WHEEL ")

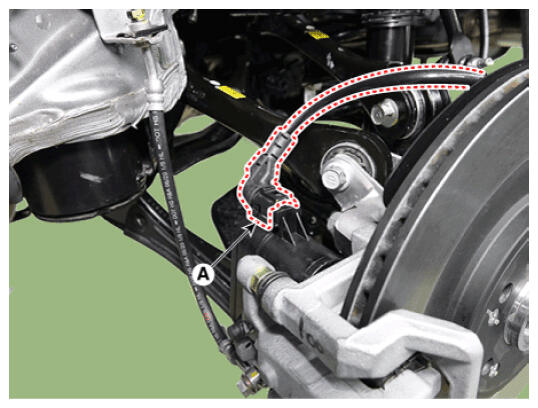

- Disconnect the EPB connector (A).

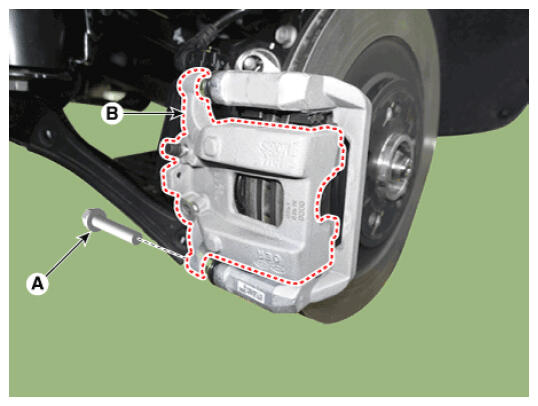

- Remove the guide rod bolt (A) and then pivot the caliper body (B) up out of the way.
Tightening torque:
37.2 - 41.1 N.m (3.8 - 4.2 kgf.m, 27.4 - 30.3 lb-ft)

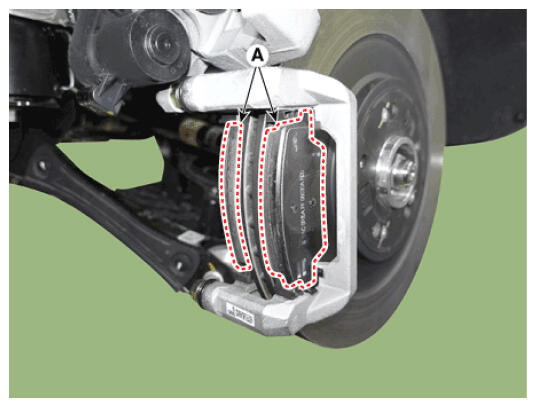

- Remove the brake pad (A).

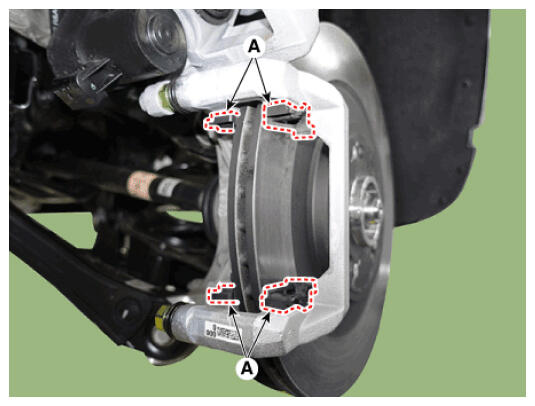

- Remove the pad liner (A).

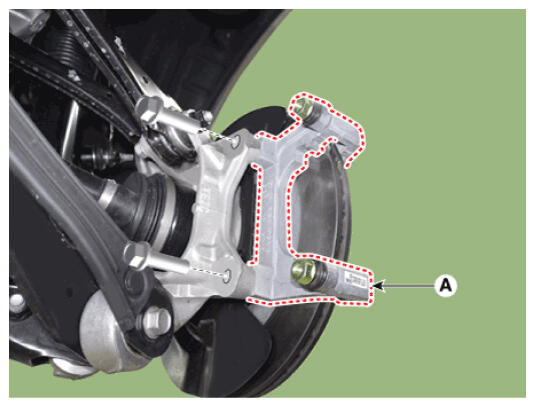

- Remove the bolts and then remove the caliper carrier (A).
Tightening torque:
78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)
NOTE:- Caliper carrier mounting bolts must use a new one.

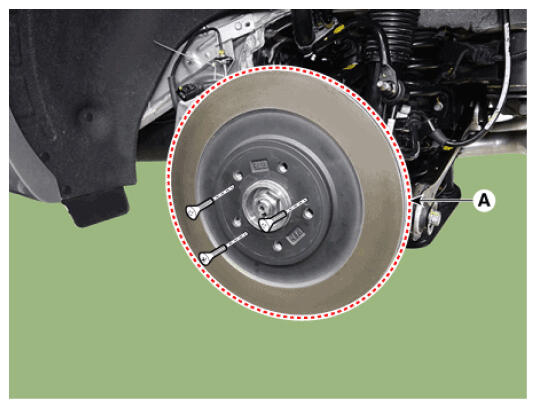

- Remove the rear brake disc (A) after loosening the screw.
Tightening torque
4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)
