Rear Brake Disc Runout Check
- Remove the rear wheel & tire.
(Refer to Suspension System - "WHEEL ")

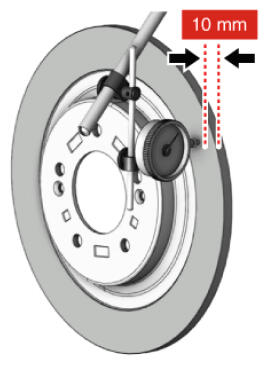

- Place a dial gauge about 10 mm (0.20 in) from the outer circumference of the brake disc, and measure the runout of the disc.
Brake disc runout
Limit: 0.055 mm (0.0019 in) or less (new one)
- If the runout of the brake disc exceeds the limit specification, replace the disc, and then measure the runout again.
- If the runout cannot be corrected by changing the position of the brake disc, replace the brake disc.
- Install the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")
