Rear Brake Caliper: Removal
- Disconnect the (-) battery terminal.
- Remove the rear wheel & tire.
(Refer to Suspension System - "WHEEL ")

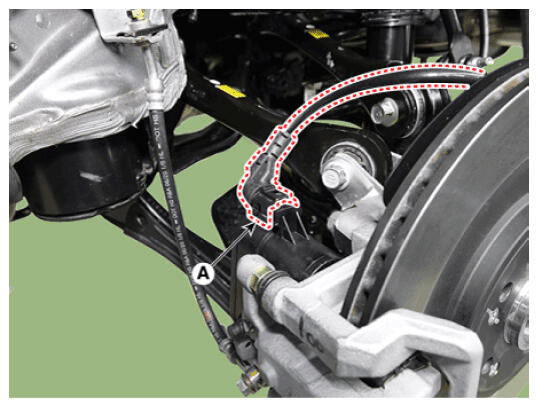

- Loosen the brake hose bolt from the caliper separate the brake hose (A).
Tightening torque:
24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb-ft)
NOTE:- Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.

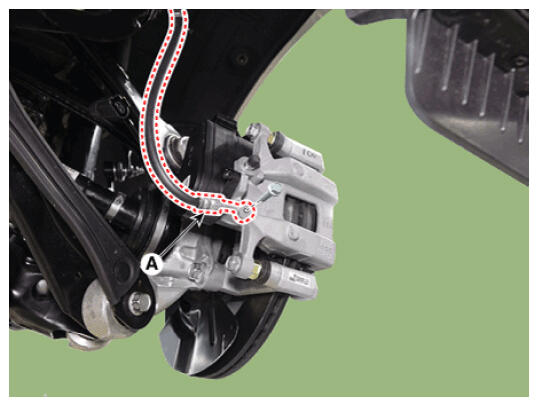

- Disconnect the EPB connector (A).

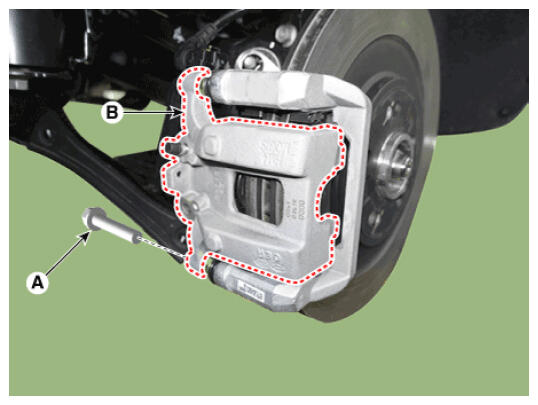

- Remove the guide rod bolt (A) and then pivot the caliper body (B) up out of the way.
Tightening torque:
37.2 - 41.1 N.m (3.8 - 4.2 kgf.m, 27.4 - 30.3 lb-ft)

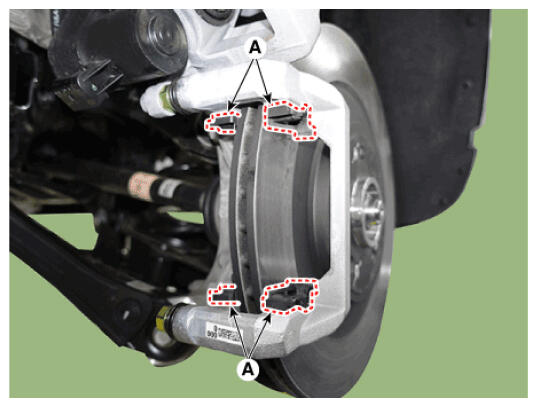

- Remove the brake pad (A).
- Remove the brake pad liner (A).

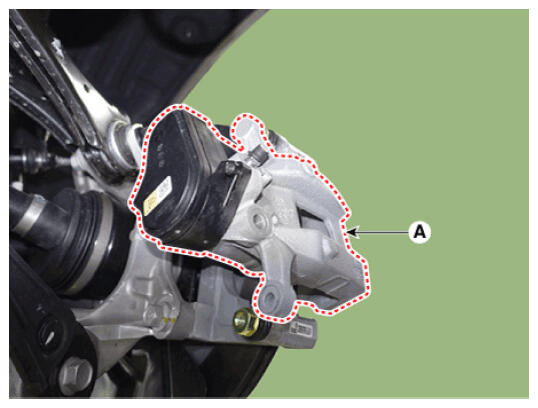

- Remove the guide rod bolt and then remove the caliper body (A).
Tightening torque:
37.2 - 41.1 N.m (3.8 - 4.2 kgf.m, 27.4 - 30.3 lb-ft)

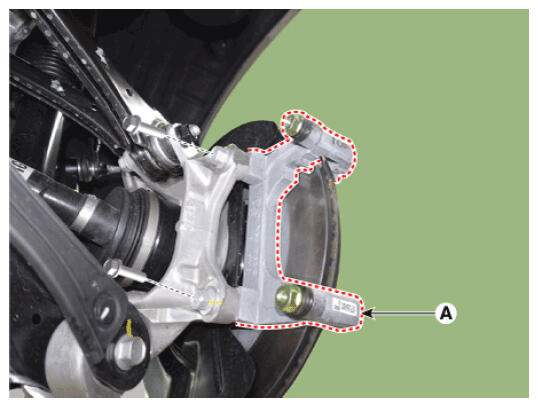

- Remove the bolts and then remove the caliper carrier (A).
Tightening torque:
78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)
NOTE:- Caliper carrier mounting bolts (A) must use a new one.
