Home >> Genesis >> 2024 >> GV70 2.5T >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Brake System >> Rear Brake Caliper >> Components And Components Location >> Components

Components And Components Location: Components

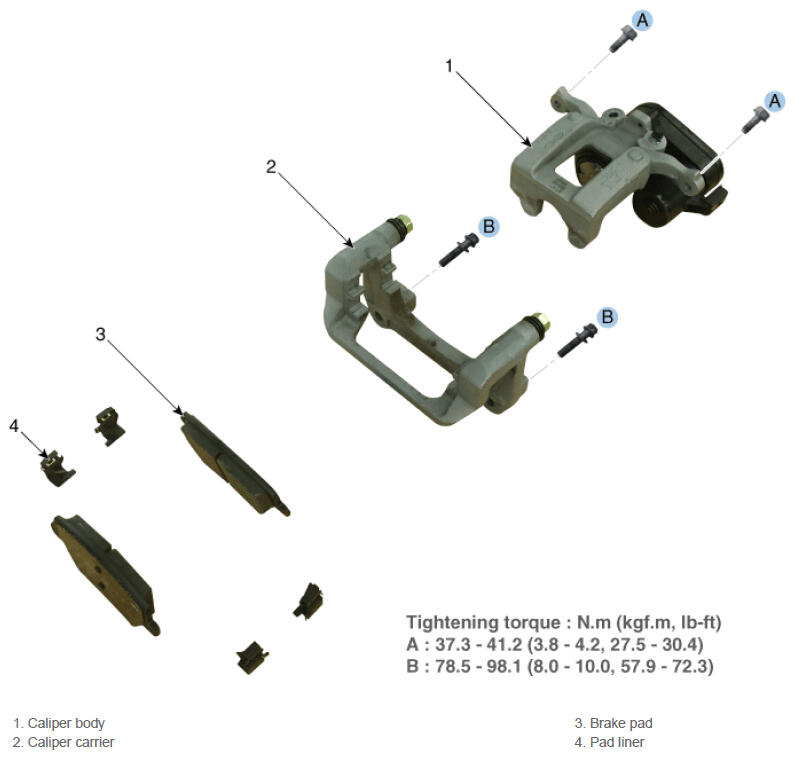

Fig 1: Rear Brake Caliper Components Location With Torque Specifications

G16854956

Courtesy of HYUNDAI MOTOR AMERICA
