[Mando 18 inch]

Disconnect the (-) battery terminal.
Remove the front wheel & tire.
(Refer to Suspension System - "WHEEL ")
Remove the guide rod bolt and then pivot the caliper body (A) up out of the way.
Tightening torque:

37.2 - 41.1 N.m (3.8 - 4.2 kgf.m, 27.4 - 30.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

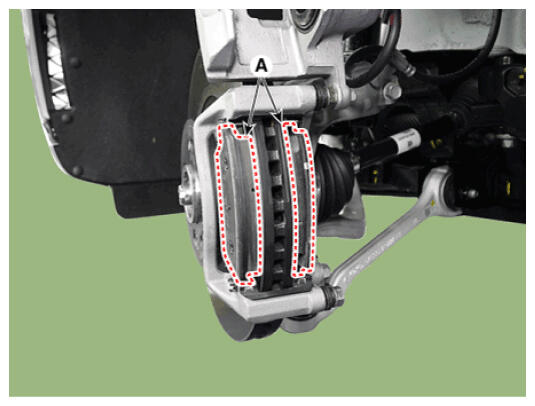

Remove the brake pad (A).

Courtesy of HYUNDAI MOTOR AMERICA

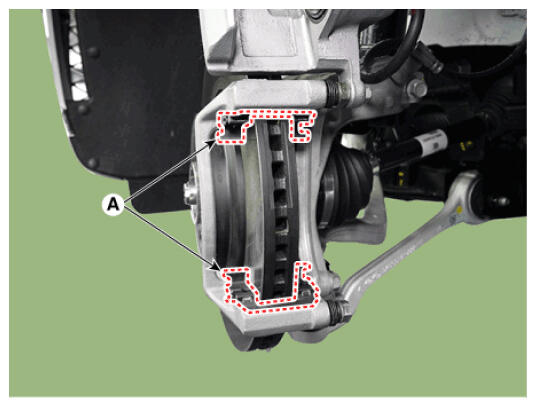

Remove the brake pad liner (A).

Courtesy of HYUNDAI MOTOR AMERICA

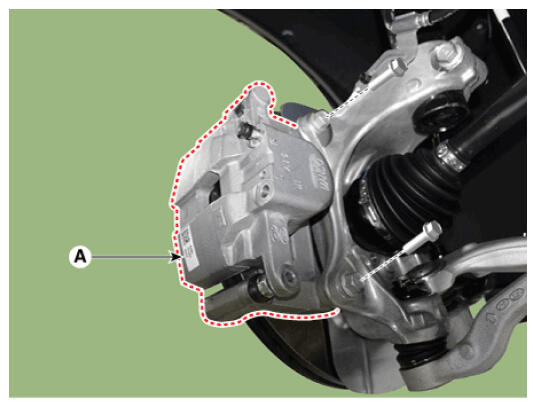

Remove the caliper carrier (A) by removing the caliper mounting bolts.
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)
NOTE:
- Caliper carrier mounting bolts must use a new one.
Courtesy of HYUNDAI MOTOR AMERICA

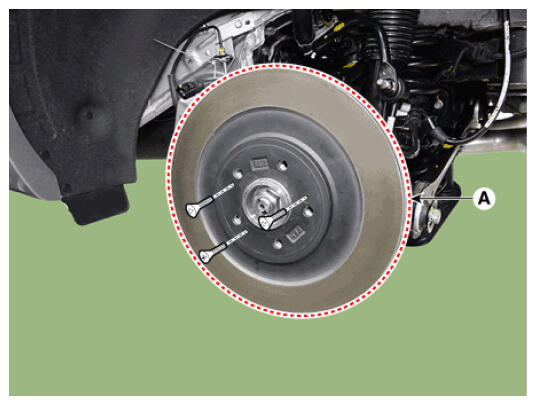

Remove the front brake disc (A) by loosening the screws.
Tightening torque:

4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
