[Continental 19 inch]
- Disconnect the (-) battery terminal.
- Remove the front wheel & tire.
(Refer to Suspension System - "WHEEL ")

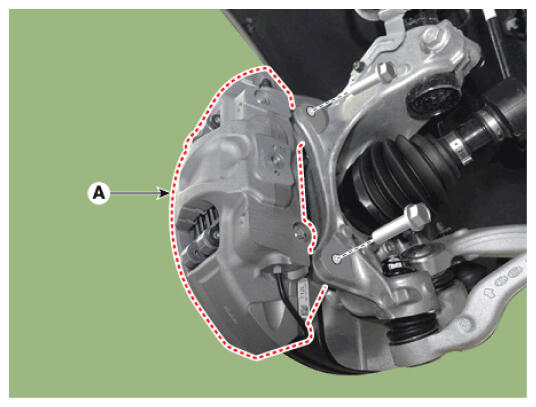

- Remove the brake caliper (A) by removing the mounting bolts.
Tightening torque:
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

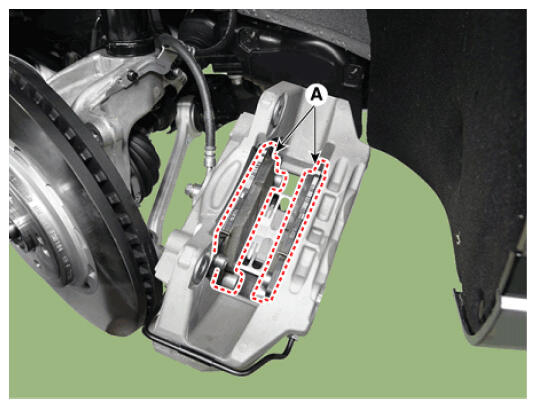

- Remove the brake pad and cover shim (A).

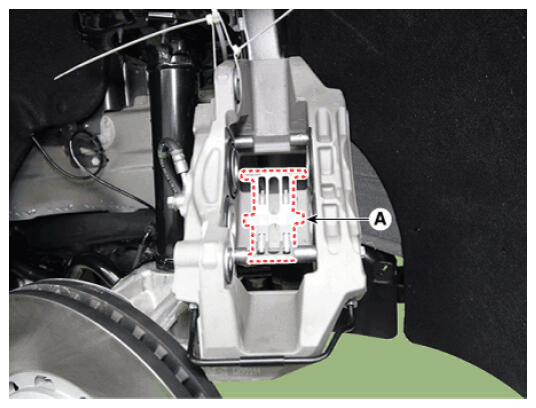

- Remove the radial spring (A).NOTE:
- Fix the caliper assembly with a wire.

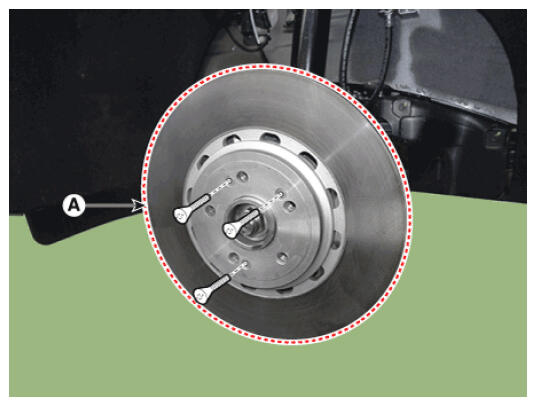

- Remove the front brake disc (A) by loosening the screws.
Tightening torque:
4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)
