Front Disc Brake: Installation
- Install in the reverse order of removal.
- Use the SST (09581-C3100) when installing the brake caliper assembly.NOTE:
- Carefully press it to prevent damaging the piston inlet.
- Make sure not to let the piston interfere when assembling the caliper body to the carrier.

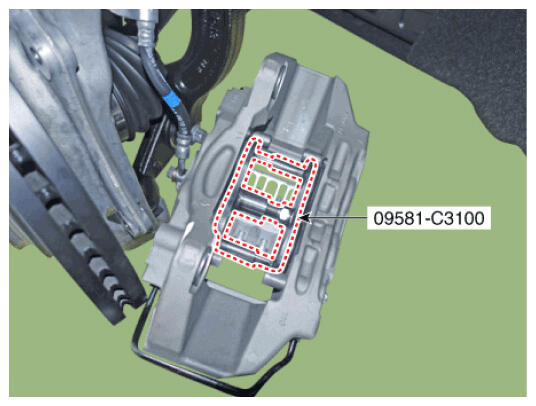

[Mando 18 inch]

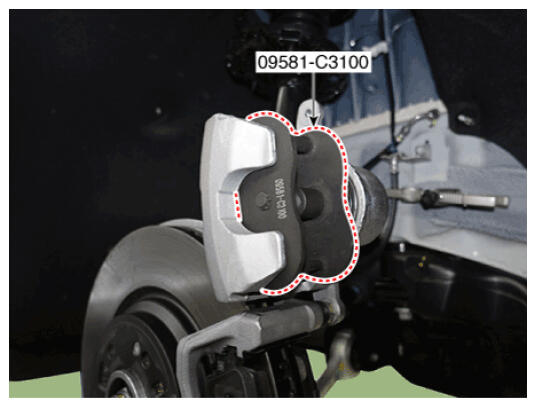

[Continental 19 inch]
- Check the brake oil leakage and pedal operating condition.
