Front Brake Disc Runout Check
- Remove the front wheel & tire.
(Refer to Suspension System - "WHEEL ")

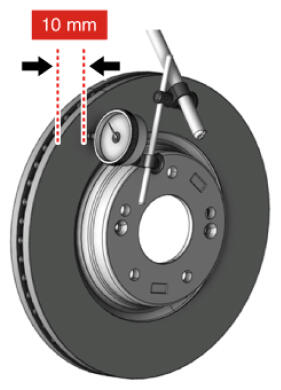

- Place a dial gauge about 10 mm (0.20 in) from the outer circumference of the brake disc, and measure the runout of the disc.
Brake disc runout
Limit: 0.050 mm (0.0016 in) or less (new one)
- If the runout of the brake disc exceeds the limit specification, replace the disc, and then measure the runout again.
- If the runout does not exceed the limit specification, install the brake disc after turning it 180° and then check the runout of the brake disc again.
- Install the front wheel and tire.
(Refer to Suspension System - "WHEEL ")
