Front Brake Caliper: Installation

Install in the reverse order of removal.
Use the SST (09581-C3100) when installing the brake caliper assembly.
NOTE:
- Carefully press it to prevent damaging the piston inlet.
- Make sure not to let the piston interfere when assembling the caliper body to the carrier.

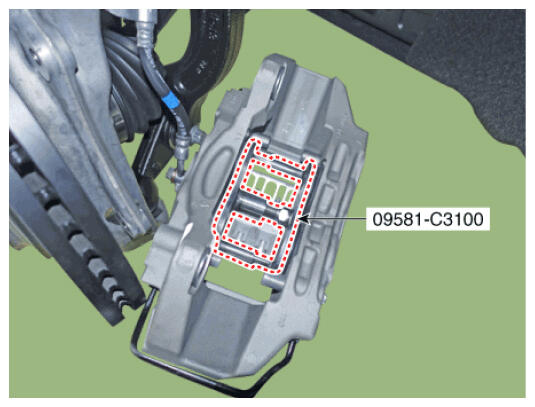

[Mando 18 inch]

Courtesy of HYUNDAI MOTOR AMERICA

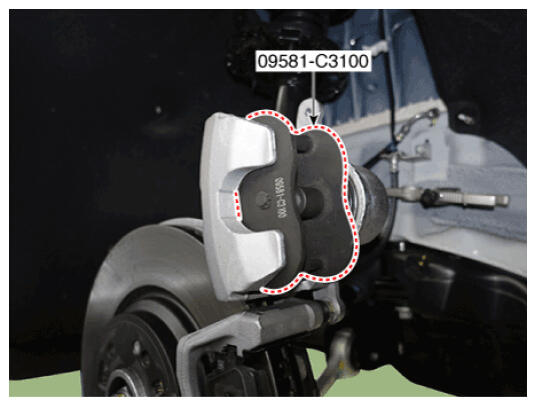

[Continental 19 inch]

Courtesy of HYUNDAI MOTOR AMERICA
After installing, bleed the brake system.
(Refer to Brake System - "BRAKE BLEEDING PROCEDURES ")
