Brake Pedal Travel Sensor (PTS) Calibration Procedure

The calibration must be done while the vehicle is parked without stepping on the brake pedal and while there is no vibration on the vehicle.

1. Connect the diagnostic scan tool. (CAN line or OBD connector)
2. Turn ignition switch ON.

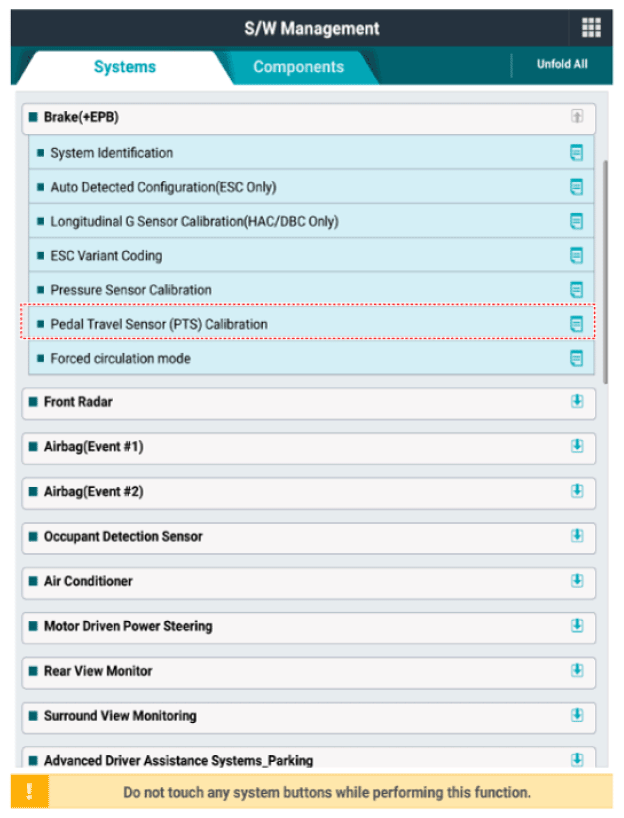

3. Select the "Pedal Travel Sensor (PTS) Calibration".
4. Follow prompts displayed on the diagnostic scan tool screen to complete brake pedal sensor calibration.

   Courtesy of HYUNDAI MOTOR AMERICA

5. Turn ignition switch off after calibration procedure.
6. Turn ignition switch on and then confirm success or failure of calibration.
