[Mando 18 inch]
- Disconnect the (-) battery terminal.
- Remove the front wheel & tire.
(Refer to Suspension System - "WHEEL ")

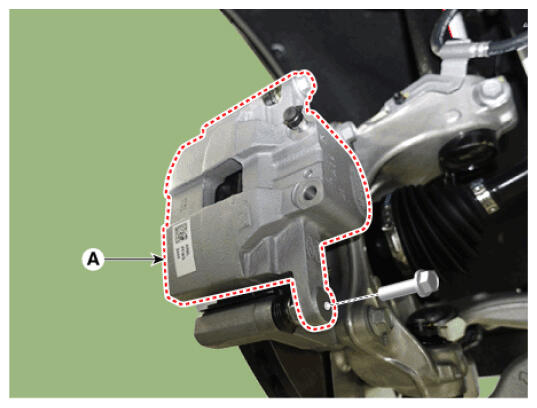

- Remove the guide rod bolt and then pivot the caliper body (A) up out of the way.
Tightening torque:
37.2 - 41.1 N.m (3.8 - 4.2 kgf.m, 27.4 - 30.3 lb-ft)

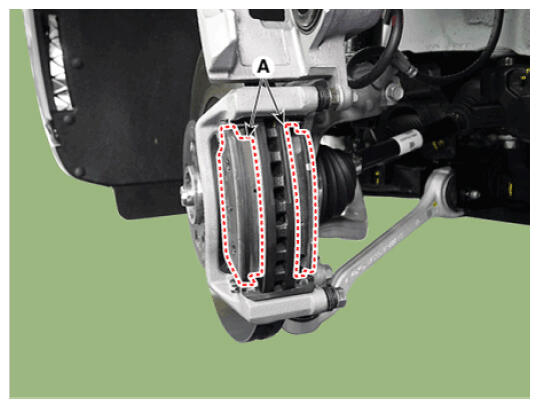

- Remove the brake pad (A).

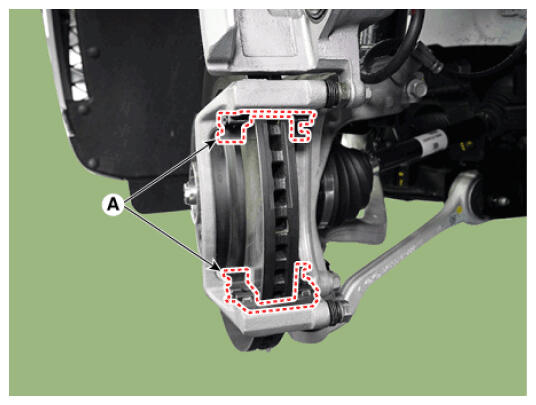

- Remove the brake pad liner (A).
NOTE:
- When replacing the brake pads, replace both the brake pads, pad retainer, and pad shim.
- Note the direction when replacing the pad retainer and inner pad shim.
- When replacing the brake pad retainer, make sure there is no gap.
- Decrease/drag/noise can occur during brake operation if there is a gap or the pad retainer deformed.

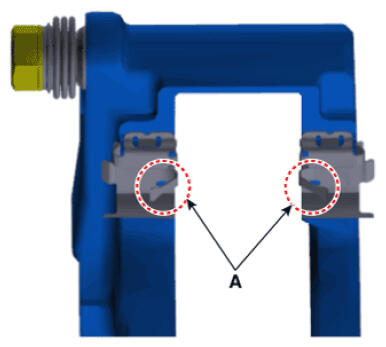

- Be careful not to deform the return part (A) of the pad retainer (retraction part).
