Rear Brake Pad

Install in the reverse order of removal.
NOTE:

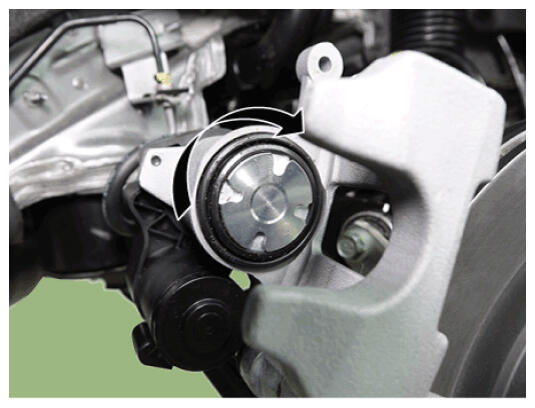

- Carefully press it to avoid damaging the piston inlet.
- Make sure not to let the piston interfere when assembling the caliper body to the carrier.
Courtesy of HYUNDAI MOTOR AMERICA
After installing the rear caliper, perform "Brake Pad Replacement Mode" using the self-diagnosis.
(Refer to Parking Brake System - "ADJUSTMENT ")
Apply the parking brake several times and check for normal operation.
Check if the parking brake is operating normally.
