Brake Line: Removal: [Front]

1. Disconnect the (-) battery terminal.
2. Disconnect the brake fluid level switch connector, and remove the reservoir cap.
3. Remove the brake fluid from the master cylinder reservoir with a syringe.
   CAUTION:

   • Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
   • Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.
4. Remove the front wheel & tire.

   (Refer to Suspension System - "WHEEL ")

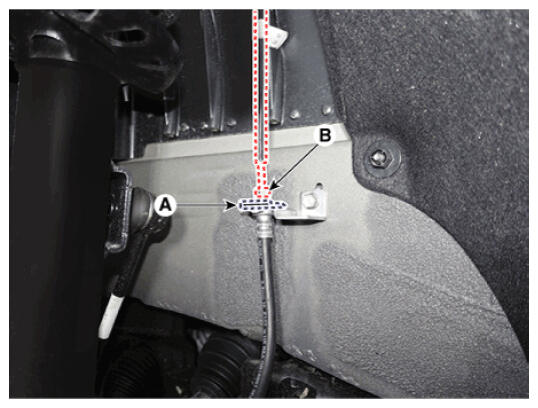

5. Remove the brake hose clip (A).
6. Separate the brake tube after loosening the tube flare nut (B).

   Tightening torque:

   13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

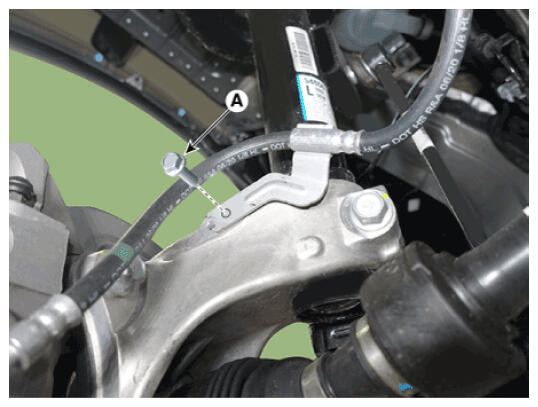

7. Loosen the brake hose bracket mounting bolt (A).

   Tightening torque:

   8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

8. Separate the brake hose (A) from the brake caliper by loosening the bolt.

   Tightening torque:

   24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb-ft)

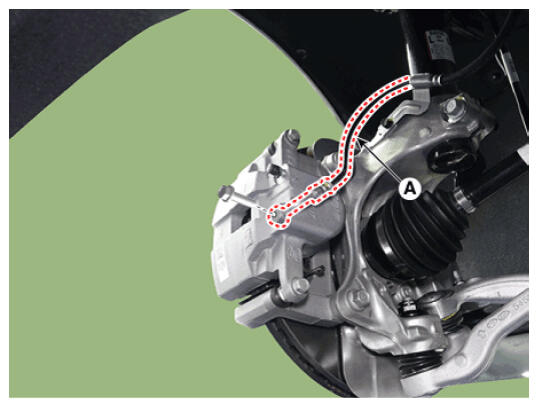

   [Mando 18 inch]

   Courtesy of HYUNDAI MOTOR AMERICA

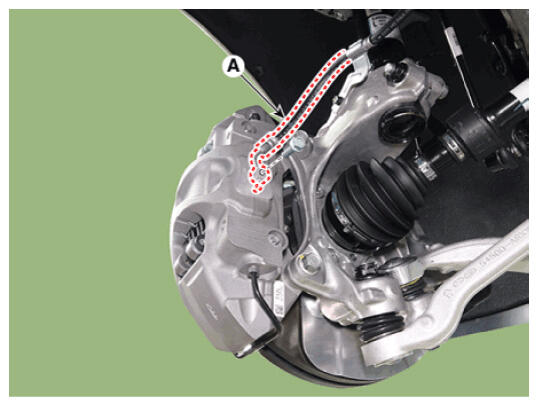

[Continental 19 inch]

Courtesy of HYUNDAI MOTOR AMERICA
