Brake Line: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Use a new washer (A) whenever installing.

    [Front]

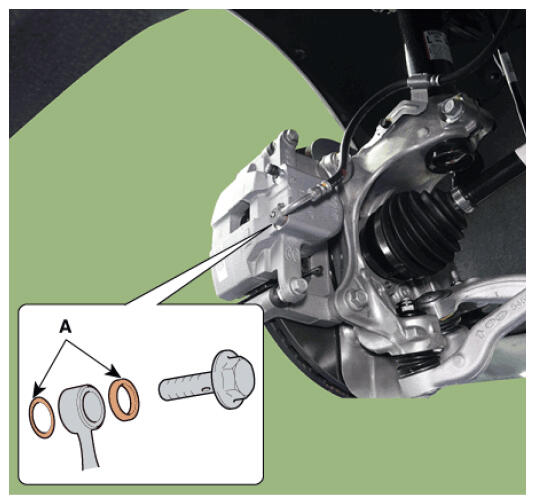

    Mando 18 inch

    G16854916Courtesy of HYUNDAI MOTOR AMERICA

    Continental 19 inch

    G16854917Courtesy of HYUNDAI MOTOR AMERICA

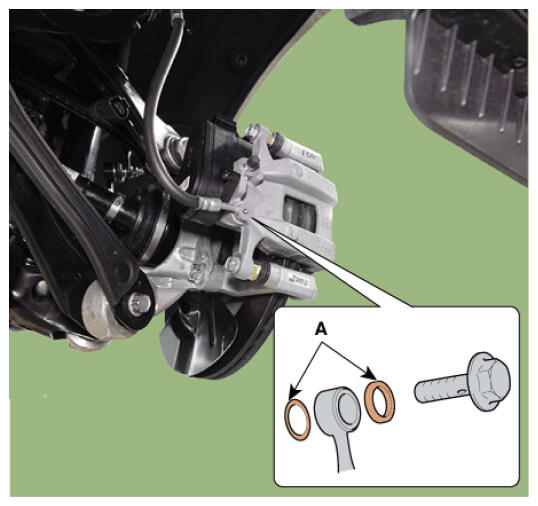

    [Rear]

    G16854918Courtesy of HYUNDAI MOTOR AMERICA
  2. After installing, bleed the brake system.

    (Refer to Brake System - "BRAKE BLEEDING PROCEDURES ")
