Components And Components Location: Components

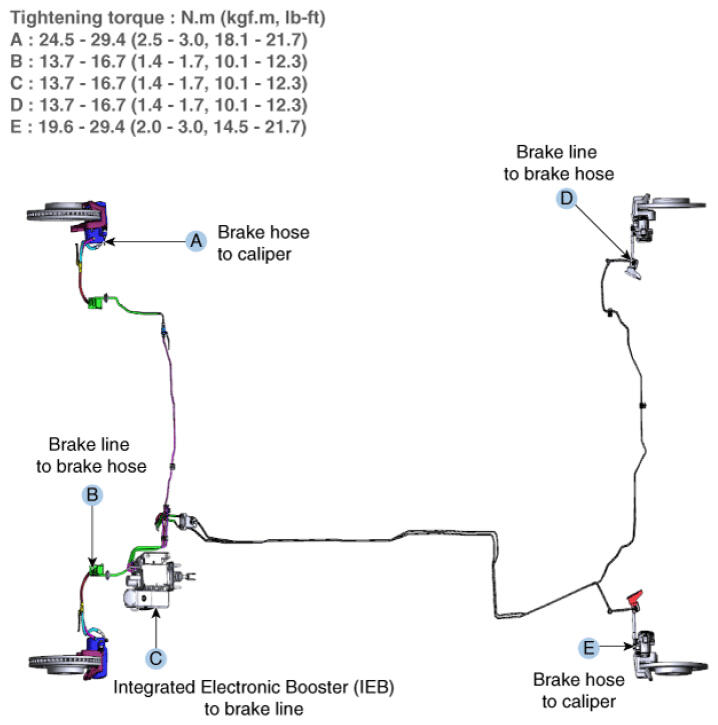

Fig 1: Brake Line Components Location With Torque Specifications

G16854909

Courtesy of HYUNDAI MOTOR AMERICA
