Air Bleeding Tool (09580-3D100) Removal Procedure

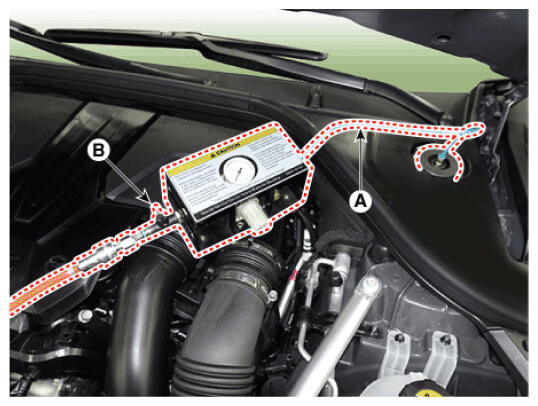

  1. Close the air shut-off valve (B) first, after disconnecting the air hose (A), bleed air in the reservoir tank by opening the air shut-off valve (B) slowly.
    G16854896Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • To prevent backflow of brake fluid, be sure to open the air shut-off valve slowly then bleed air in the reservoir tank.

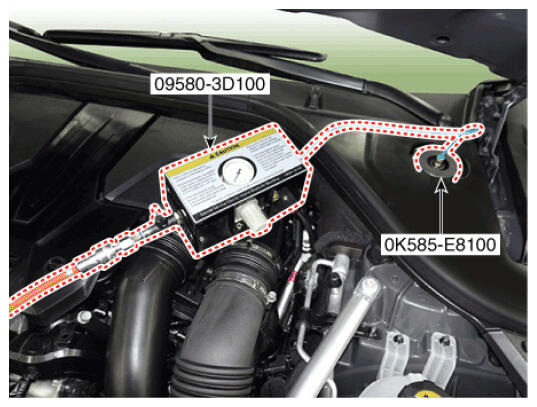

  2. Remove SST (09580-3D100) and the cap of SST (0K585-E8100) on the reservoir tank.
    G16854897Courtesy of HYUNDAI MOTOR AMERICA
  3. Inatall the brake reservoir tank cap.
