Air Bleeding Tool (09580-3D100) Installation Procedure

CAUTION:
  • To prevent the brake fluid reservoir tank from being damaged and ensure the safety of worker, set the pressure of the gauge to the standard value before installing the SST.

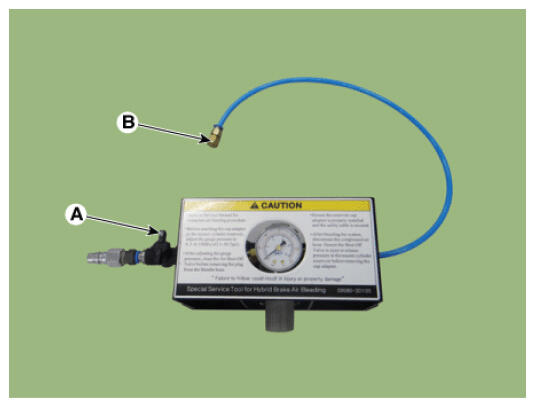

  1. Before installing the SST on the vehicle, close the air shut-off valve (A) to adjust the pressure gauge to the standard value
    G16854890Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • For safety of worker and correct pressure setting, make sure that the plug (B) is installed correctly.
  2. After connecting an air hose and opening the air shut-off valve (A), adjust the pressure gauge (B) with to the standard value.

    Standard pressure value:

    3 bar

    G16854891Courtesy of HYUNDAI MOTOR AMERICA

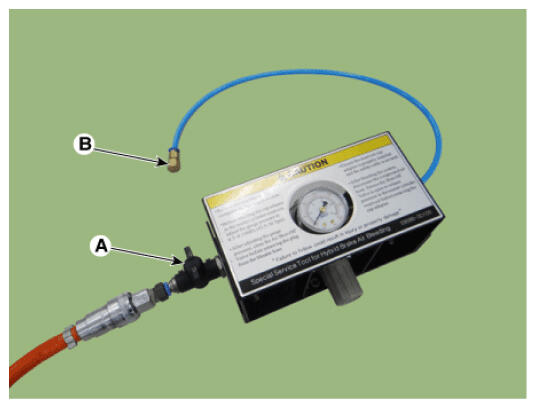

  3. Close the air shut off valve (A) and remove the plug (B).
    G16854892Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • For safety of worker, make sure that the air shut off valve is closed and remove the plug.

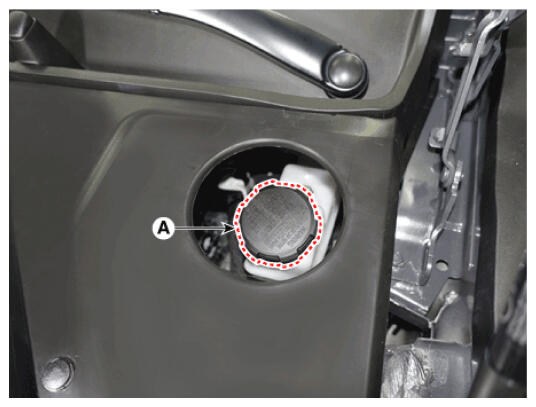

  4. Remove the brake reservoir tank cap (A).
    G16854893Courtesy of HYUNDAI MOTOR AMERICA

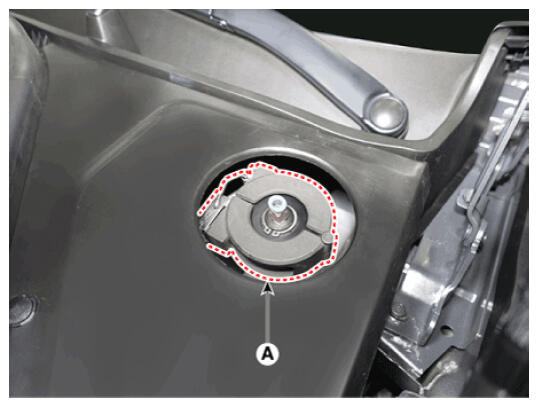

  5. Install the cap (A) of SST (0K585-E8100) on the reservoir tank.
    G16854894Courtesy of HYUNDAI MOTOR AMERICA

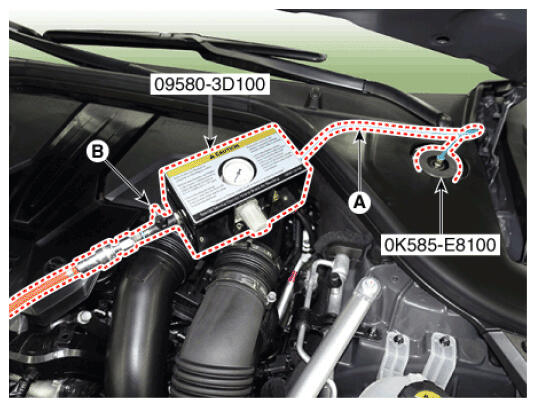

  6. Connect the SST (09580-3D100) hose (A) to SST (0K585-E8100).
  7. Apply pressure to reservoir tank by opening the air shut-off valve (B) slowly.
    G16854895Courtesy of HYUNDAI MOTOR AMERICA
