Rear Seat Cushion Blower

  1. Remove the rear seat assembly.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

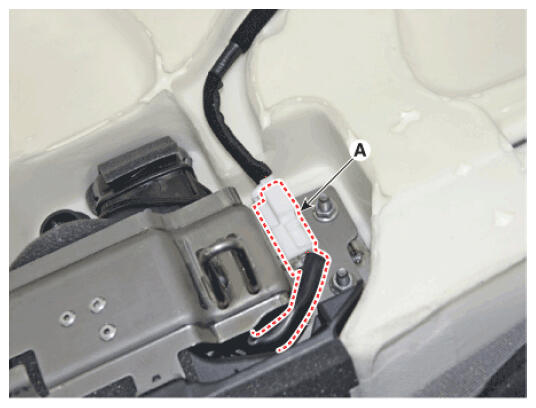

  2. Disconnect cushion blower connector (A).
    G16855863Courtesy of HYUNDAI MOTOR AMERICA

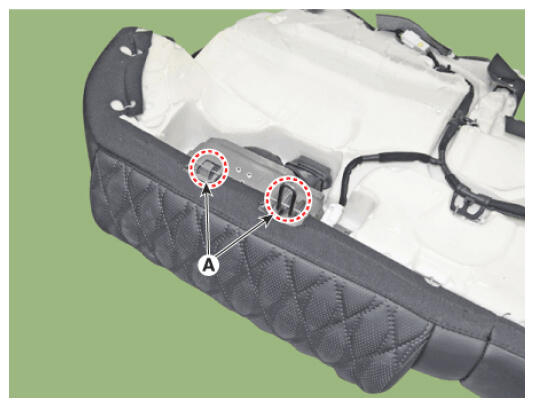

  3. Remove the protector (A).
    G16855864Courtesy of HYUNDAI MOTOR AMERICA

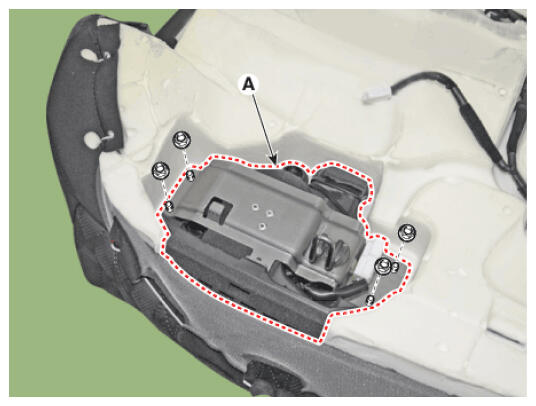

  4. Remove the cushion blower (A).
    G16855865Courtesy of HYUNDAI MOTOR AMERICA
