Rear Air Ventilation Unit]

  1. Remove the rear seat assembly.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

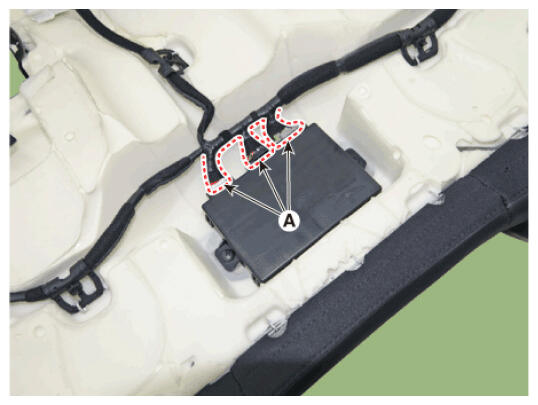

  2. Disconnect the air ventilation unit connector (A).
    G16855872Courtesy of HYUNDAI MOTOR AMERICA

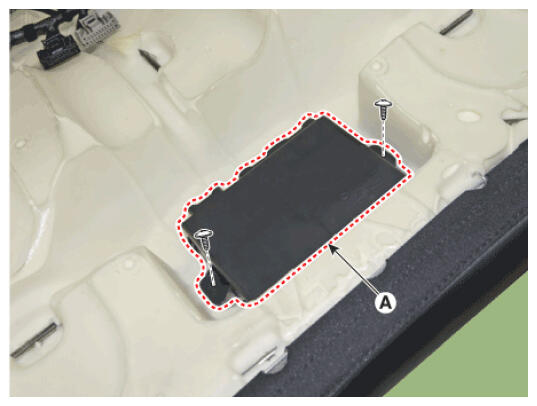

  3. Remove the air ventilation unit (A) after loosening mounting screws.
    G16855873Courtesy of HYUNDAI MOTOR AMERICA
