Front Seat Cushion Blower

  1. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  2. Disconnect cushion blower connector (A).
    G16855862Courtesy of HYUNDAI MOTOR AMERICA

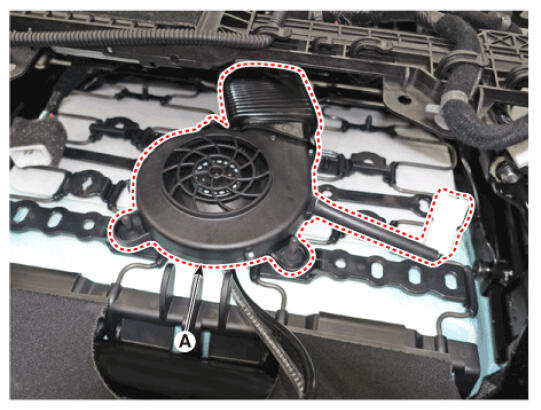

  3. Remove the cushion blower (A).
    G15839998Courtesy of HYUNDAI MOTOR AMERICA
