Rear Seat Cushion Cover: Replacement

CAUTION:

NOTE:

Remove the rear seat cushion assembly.
Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

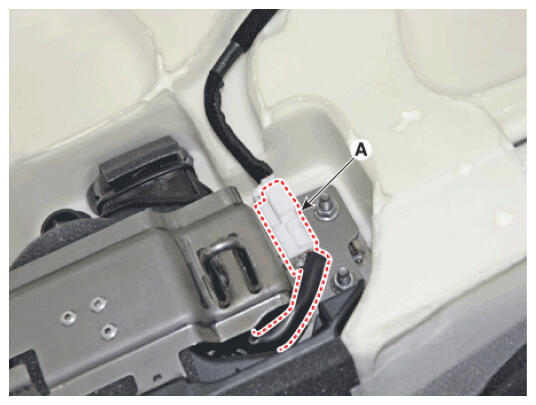

Disconnect the rear seat blower connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

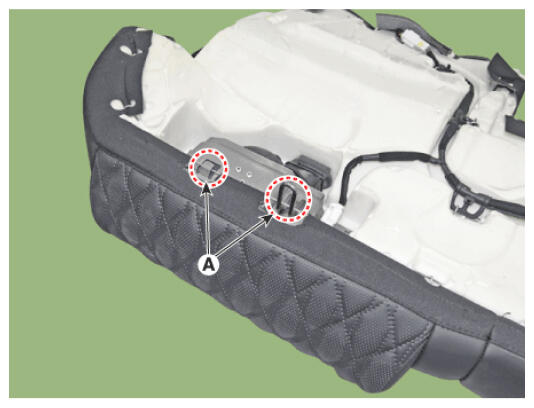

Separate the protector (A).

Courtesy of HYUNDAI MOTOR AMERICA

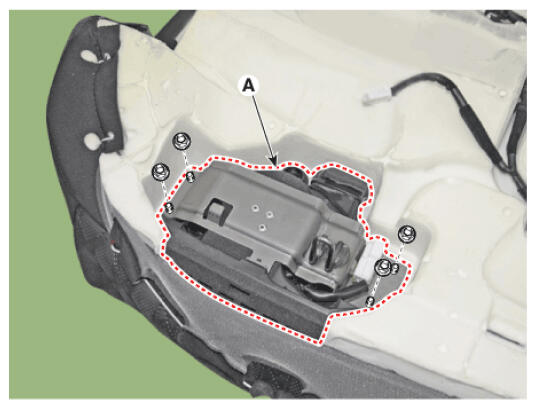

Loosen the mounting nuts, remove the rear seat cushion blower assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

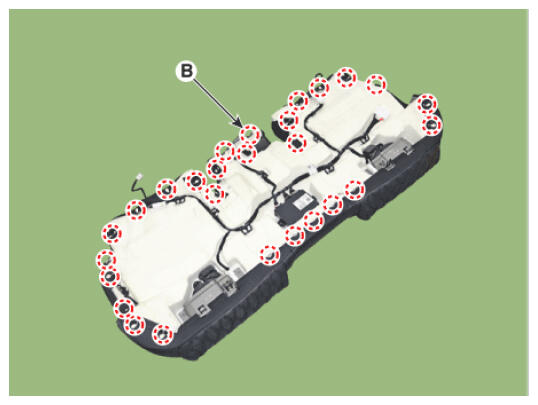

After removing the Velcro tape (A) and hog-ring clips (B) inside the rear seat cushion cover, remove the seat cushion cover (C).
CAUTION:
- Be careful not to deviate from the pads, insert wires, and aplix.
[Front side]

Courtesy of HYUNDAI MOTOR AMERICA

[Rear side]

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure that the connectors are connected completely.

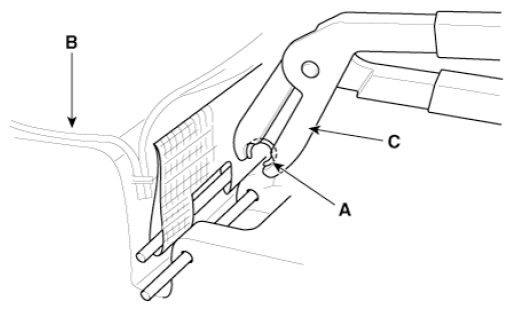

- To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog - ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880 - 4F000).
Courtesy of HYUNDAI MOTOR AMERICA
