Rear Transverse Trim: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Take care not to bend or scratch the trim and panels.

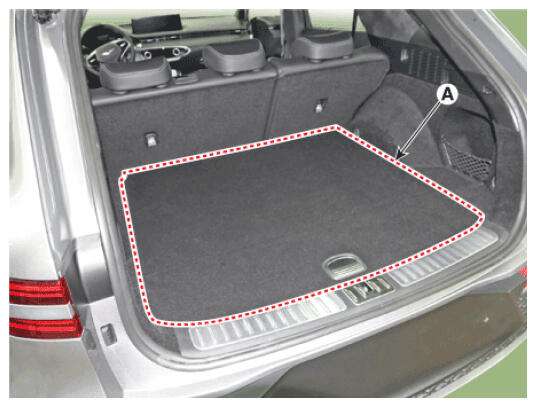

Remove the luggage board (A).

Courtesy of HYUNDAI MOTOR AMERICA

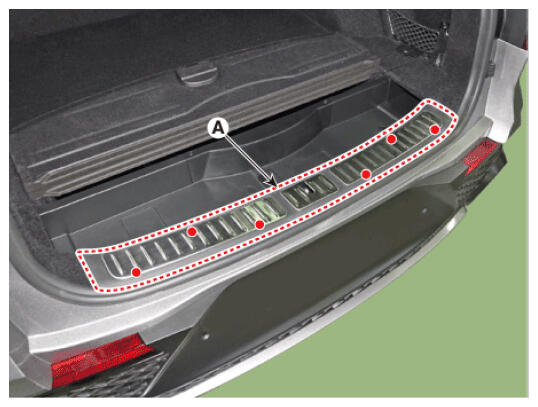

Remove the rear transverse trim (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
