Luggage Side Trim: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear transverse trim.
Refer to Trunk Trim - "REAR TRANSVERSE TRIM ")
- Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")

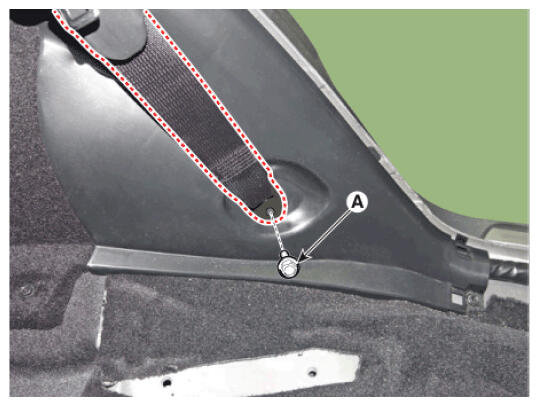

- Loosen the mounting bolt, remove the second seat belt lower anchor (A).
Tightening torque:
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

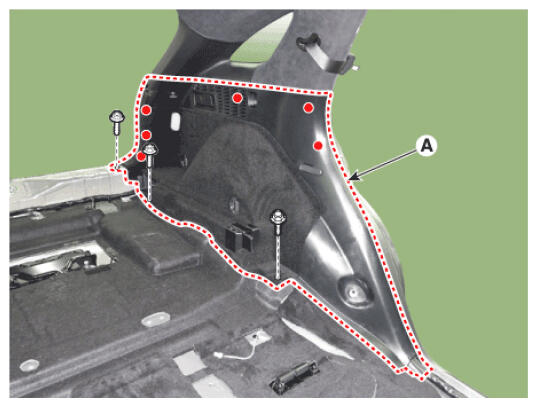

- Loosen the mounting bolts, remove the luggage side trim (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Information

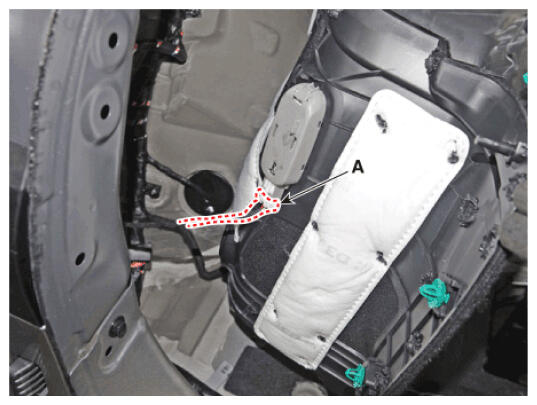

- Disconnect the luggage room lamp connector (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
