Luggage Floor Box Trim: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Take care not to bend or scratch the trim and panels.

Remove the rear transverse trim.
Refer to Trunk Trim - "REAR TRANSVERSE TRIM ")

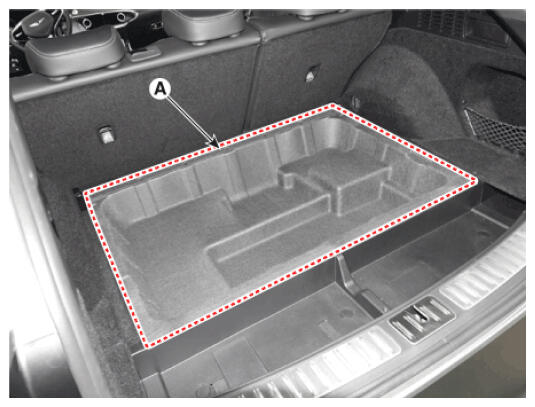

Remove the luggage tray (A).

Courtesy of HYUNDAI MOTOR AMERICA

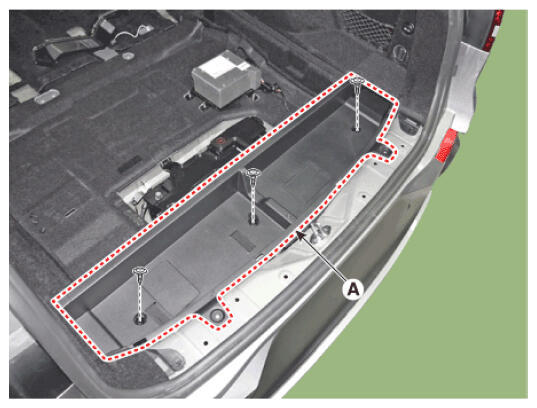

Open the plug hole, loosen the mounting screws and remove the luggage floor box trim (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
