Rear Pillar Trim: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Remove the luggage side trim.
(Refer to Trunk Trim - "LUGGAGE SIDE TRIM ")

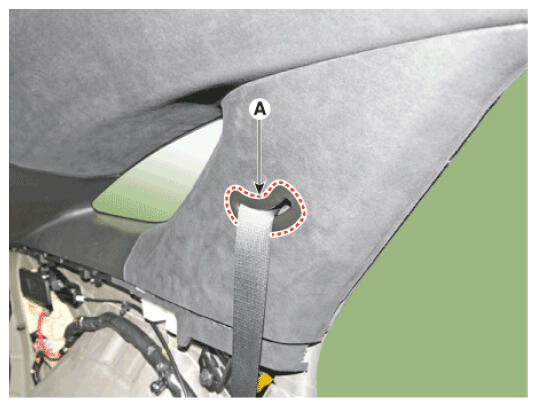

- Separate the rear seat belt upper anchor cover (A).

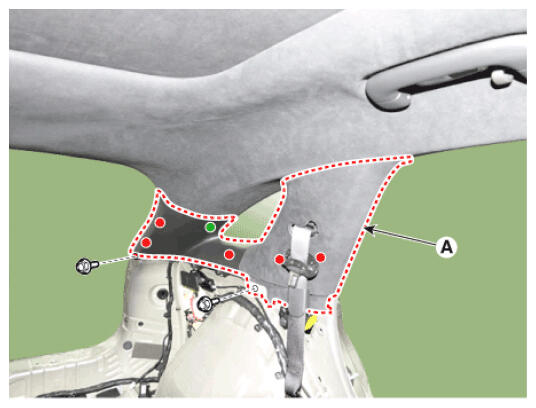

- Loosen the mounting bolts, remove the rear pillar trim (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Information
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
