Door Step Trim: Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
NOTE:
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front door step trim (A).

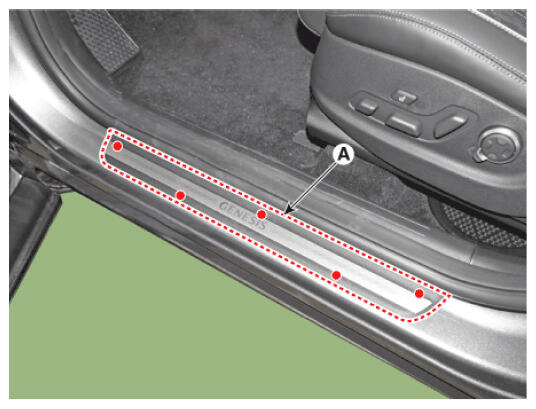

    [Front]

    G16855438Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G16855439Courtesy of HYUNDAI MOTOR AMERICA

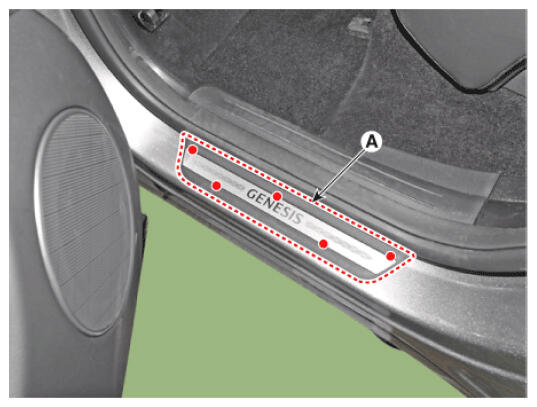

    [Rear]

    G16855440Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G16855441Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse removal procedure.

    Information

    • If the clip is damaged, install a new door step trim.
