[Center pillar lower trim]
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Remove the front and rear door scuff trim.
Refer to Interior Trim - "DOOR SCUFF TRIM ")
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

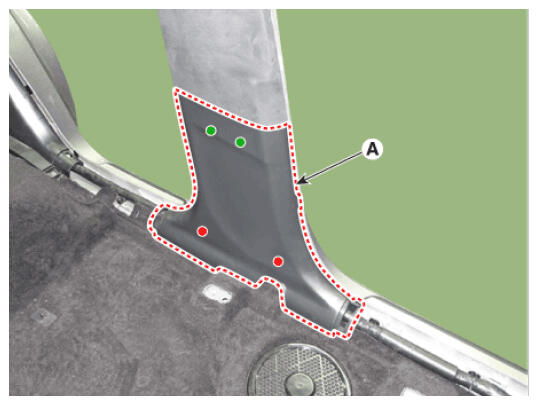

- Remove the center pillar lower trim (A)
Information
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
