Rear Console Cover: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Remove the floor console assembly.
Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

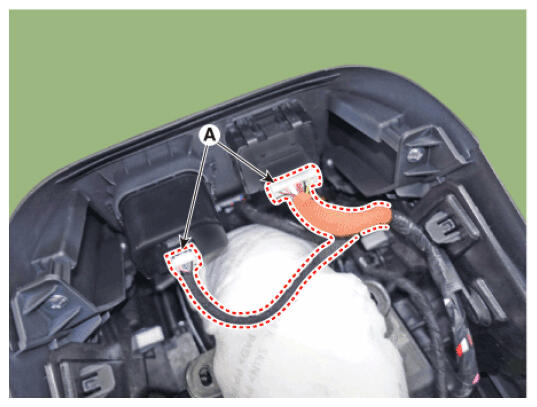

Disconnect the rear console cover connectors (A).

Courtesy of HYUNDAI MOTOR AMERICA

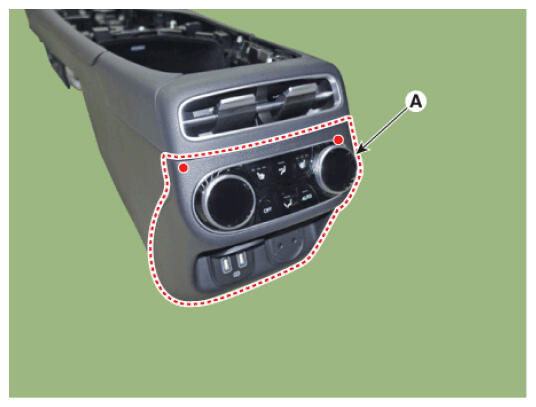

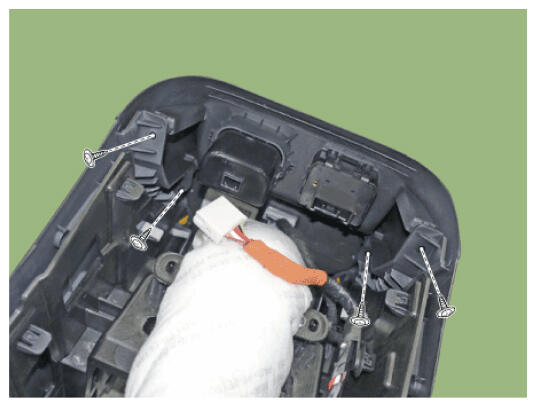

Loosen the mounting screws, remove the rear console cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA

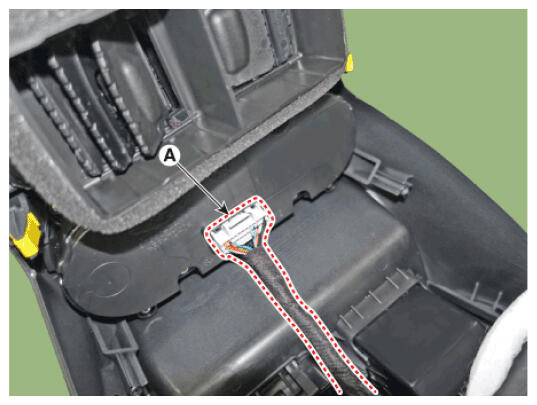

Disconnect the rear heater & A/C control unit connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
