Cowl Top Cover: Replacement

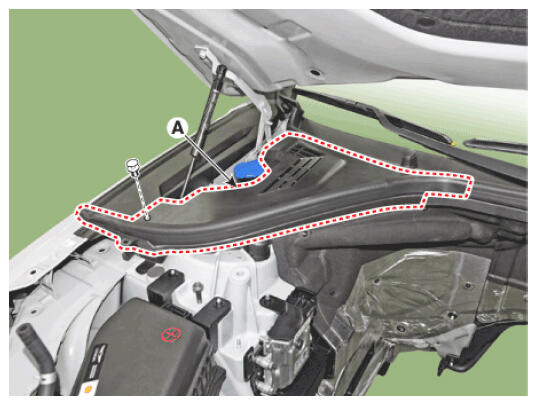

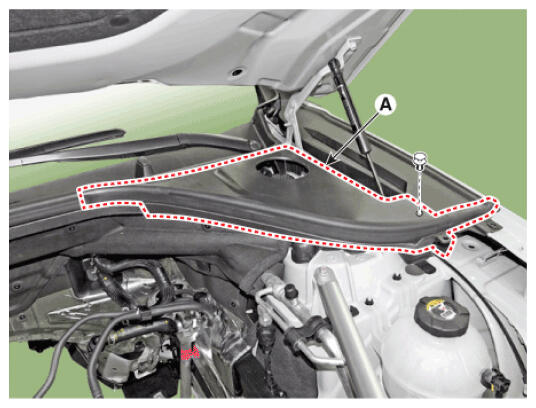

Remove the engine side cover (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
Remove the plug hole and the nuts, and then remove the wiper arm (A).

Courtesy of HYUNDAI MOTOR AMERICA

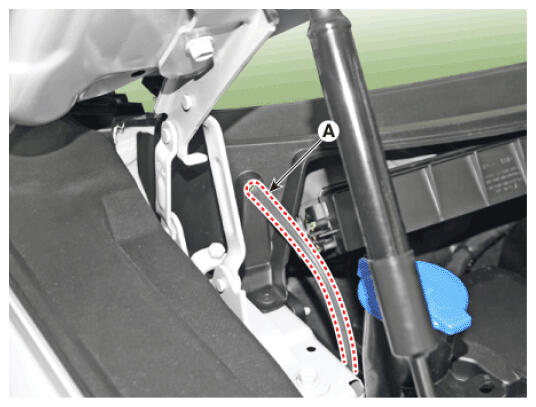

Separate the washer nozzle (A).

Courtesy of HYUNDAI MOTOR AMERICA

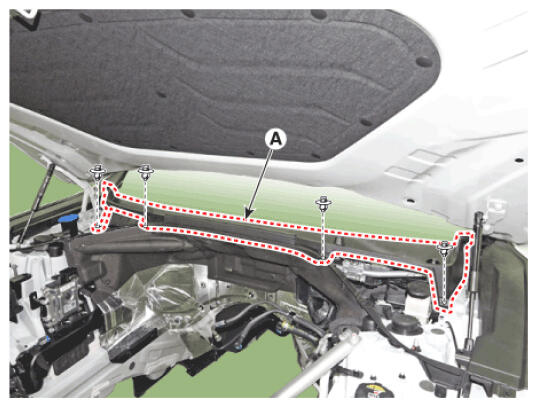

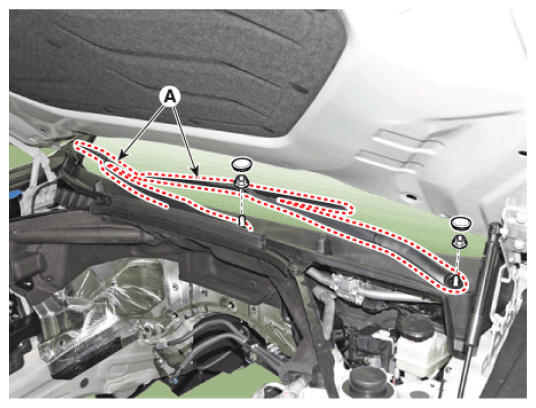

Loosen the mounting clips, remove the cowl top cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
