Roof Rack: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Remove the roof trim assembly.
(Refer to Roof Trim - "ROOF TRIM ASSEMBLY ")

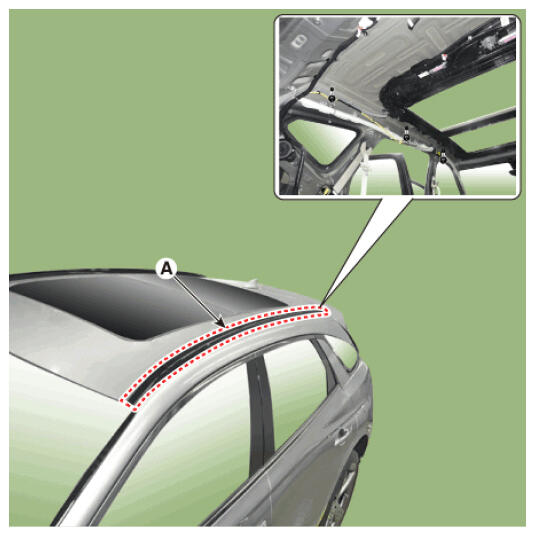

- Loosen the nuts and remove the roof rack assembly (A).
Tightening torque:
9.8 - 14.3 N.m (1.0 - 1.46 kgf.m, 7.2 - 10.6 lb-ft)
- To install, reverse removal procedure.
