Rear Wheel Guard: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Remove the rear tire.
(Refer to Suspension System - "WHEEL ")

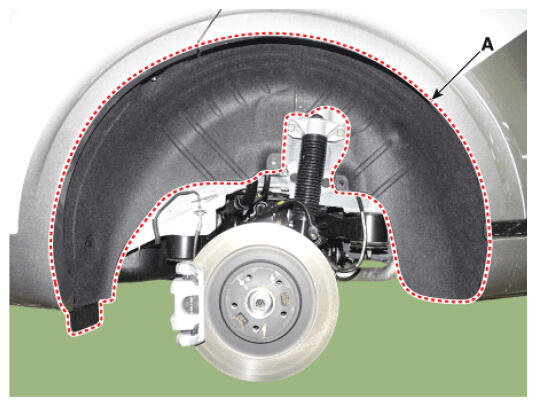

- Loosen the mounting clips, plug nuts, screws and remove the rear wheel guard (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
