Quarter Garnish: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

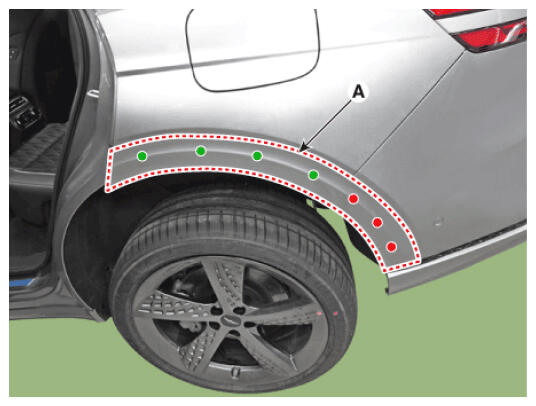

Using a flat-tip screwdriver or remover and remove the quarter garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

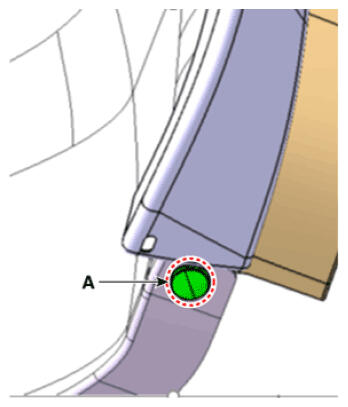

For the general specification, remove the quarter garnish after removing the mounting clip (A) at the bottom.

Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA

To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
