Fender Garnish: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

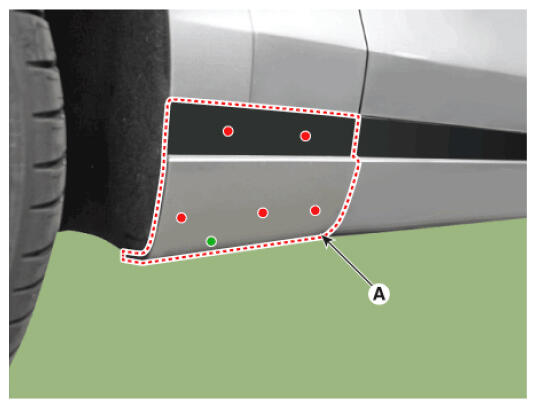

Remove the side garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA

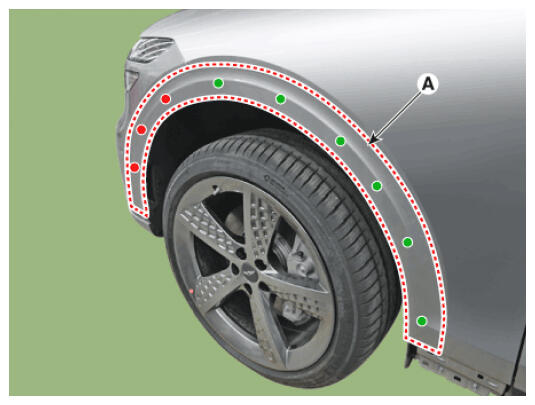

Remove the fender garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

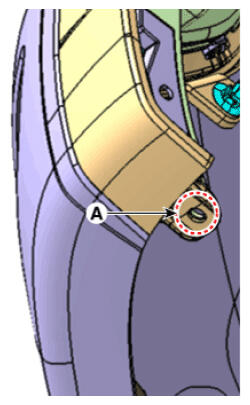

- For the general specification, remove the fender garnish after removing the mounting clip (A) at the bottom.
Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
