Door Garnish: Replacement: [Rear]

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

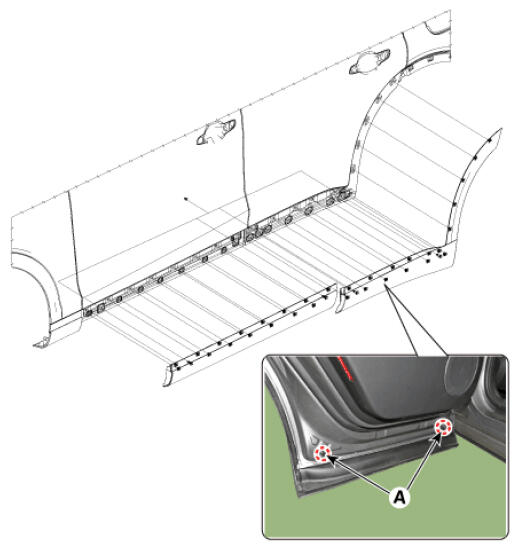

Loosen the mounting nuts (A) and remove the rear door garnish.
Tightening torque:

1.56 - 2.05 N.m (0.16 - 0.21 kgf.m, 1.16 - 1.52 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
