Rear Door Window Glass: Replacement

Remove the rear door trim.
Refer to Rear Door - "REAR DOOR TRIM ")

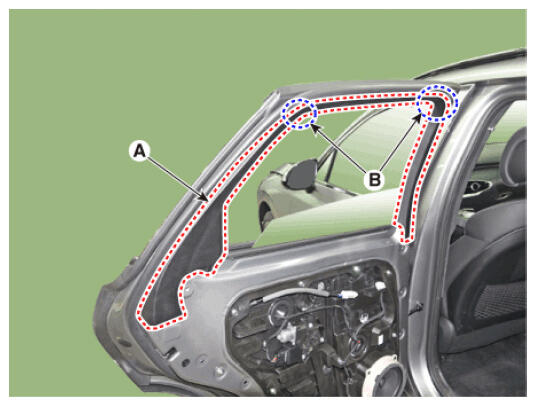

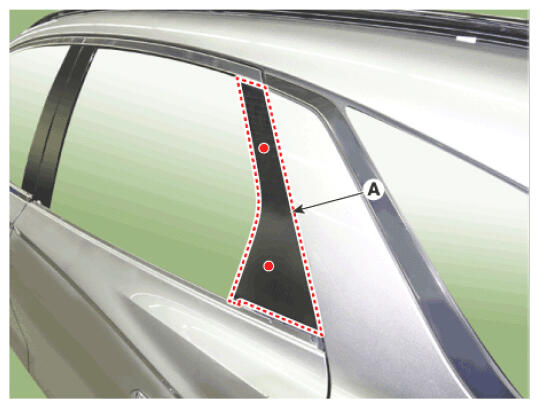

Remove the rear door delta inner cover (A).
CAUTION:
- Be careful not to break the corners (B).
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear door belt outside weatherstrip.
Refer to Rear Door - "REAR DOOR BELT OUTSIDE WEATHERSTRIP ")
Remove the rear door belt inside weatherstrip.
Refer to Rear Door - "REAR DOOR BELT INSIDE WEATHERSTRIP ")

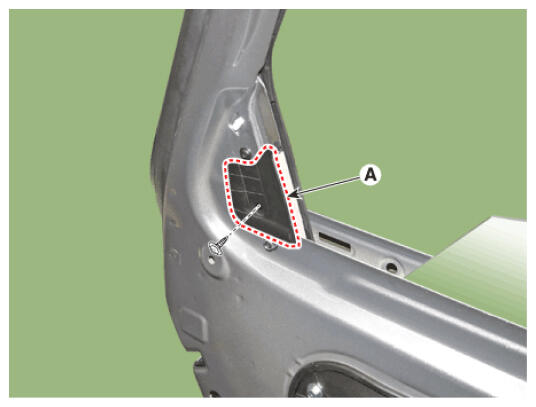

Loosen the mounting screw, remove the rear door channel cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

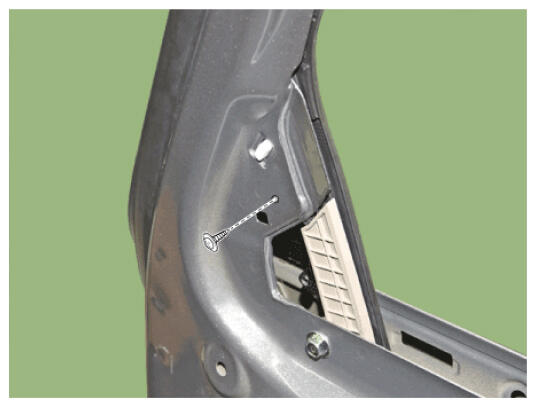

Loosen the mounting screw, remove the rear door frame garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Information

Courtesy of HYUNDAI MOTOR AMERICA

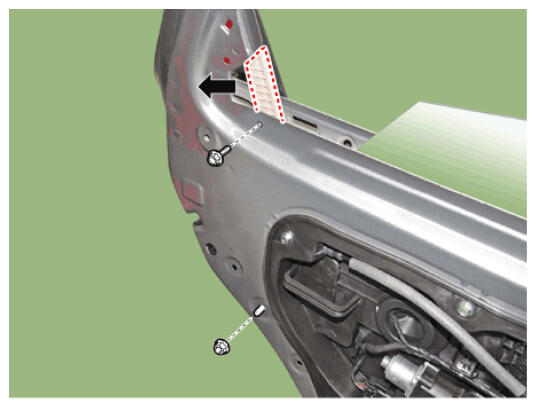

Loosen the mounting bolt and nut to separate the rear door channel in the direction of the arrow.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the plug hole (A).

Courtesy of HYUNDAI MOTOR AMERICA
Lower the glass by operating the power window switch until the glass mounting bolt is exposed in the plug hole.
CAUTION:
- Be careful not to drop the glass and/or scratch the glass surface.

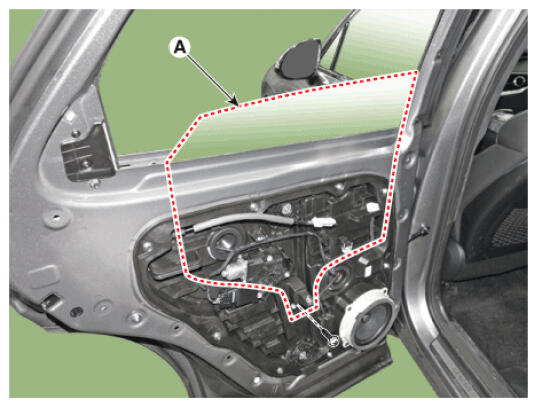

After unscrewing the mounting bolt as loosely as possible and completely loosening the bolt, tilt the rear door window glass (A) to pull out it upwards.
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure that the glass rolls up and down smoothly.
- Adjust glass position as needed.
- Make sure the door locks and opens properly.
- Replace any damaged clips (or pin-type retainers).
