[Rear door side weatherstrip]

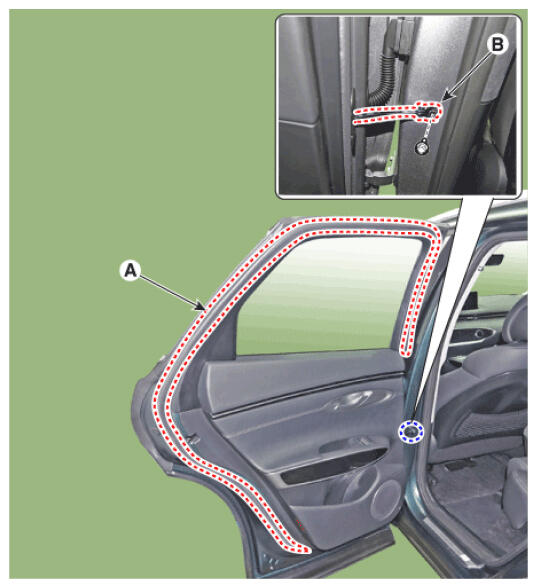

  1. Loosen the rear door checker (B) mounting bolt.

    Tightening torque:

    21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb-ft)

  2. Detach the clips, then remove the rear door side weatherstrip (A).
    G16855228Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.
