Rear Door Outside Handle: Replacement

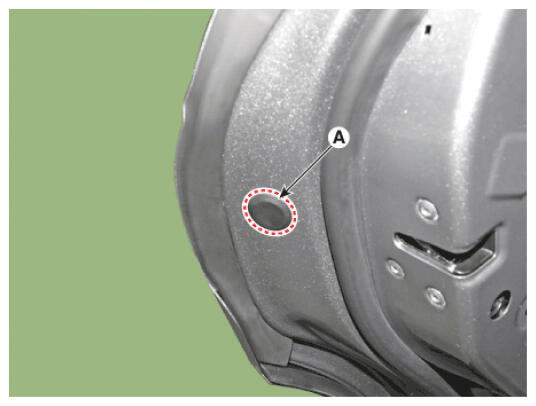

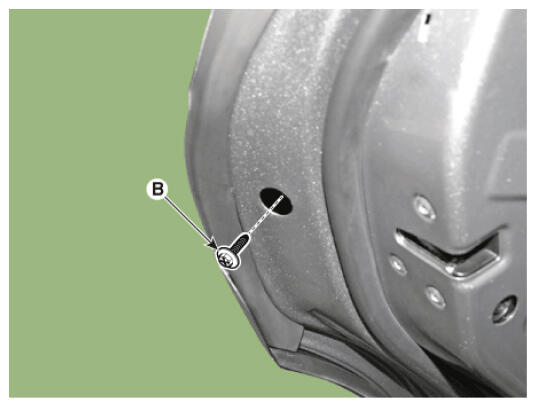

  1. Remove the plug hole (A) and then loosen the bolt (B).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

    G16855222Courtesy of HYUNDAI MOTOR AMERICA
    G16855223Courtesy of HYUNDAI MOTOR AMERICA

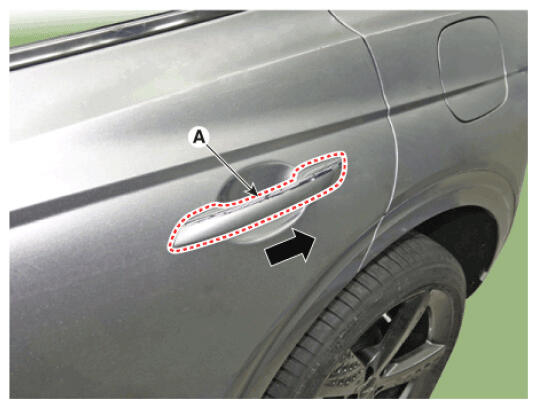

  2. Remove the rear door outside handle (A).
    G16855224Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.

    Information

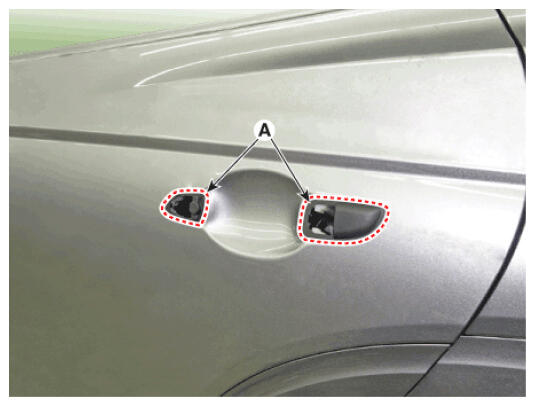

    • Be sure to install the outside handle pad (A) between the outside handle and the door panel.
      G16855225Courtesy of HYUNDAI MOTOR AMERICA
    • Make sure the door locks/unlocks and opens/closes properly.
    • Make sure the connector is connected properly.
