Rear Door Latch: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Remove the rear door module.
Refer to Rear Door - "REAR DOOR MODULE ")

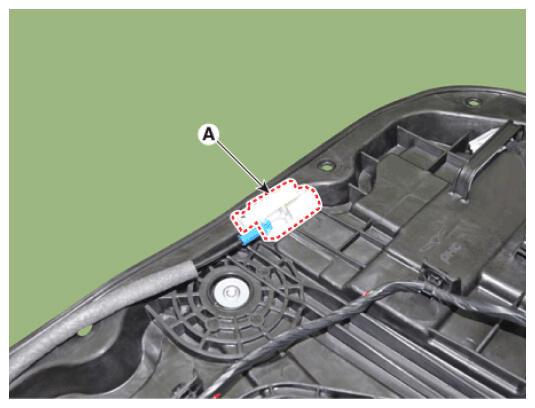

Remove the rear door inside handle cage (A).

Courtesy of HYUNDAI MOTOR AMERICA

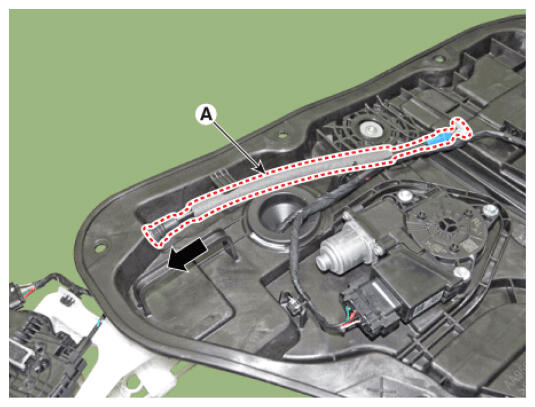

Remove the rear door inside handle cable (A) by pushing it in the direction of the arrow.

Courtesy of HYUNDAI MOTOR AMERICA

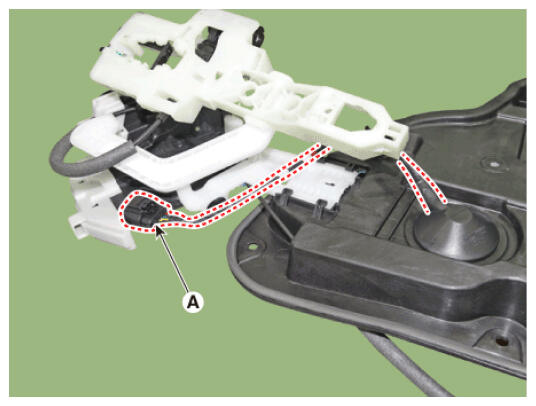

Separate the rear door outside handle base connector and wiring harness (A).

Courtesy of HYUNDAI MOTOR AMERICA

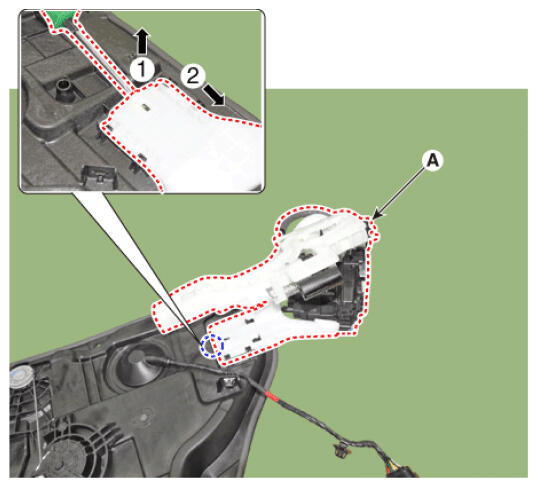

Remove the rear door latch (A).

Courtesy of HYUNDAI MOTOR AMERICA

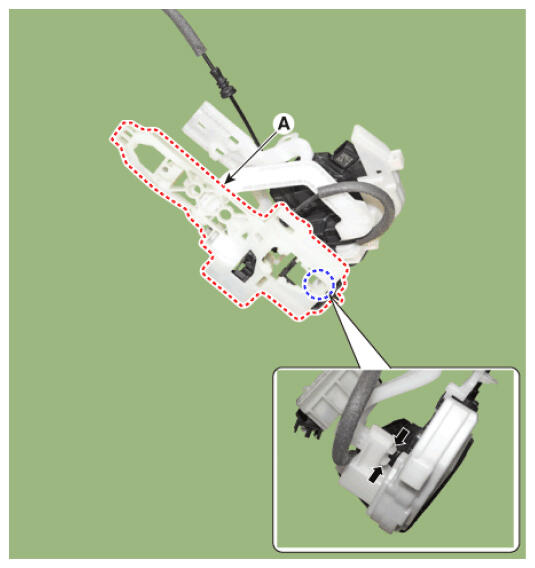

Press the lock pin, remove the rear door outside handle base bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

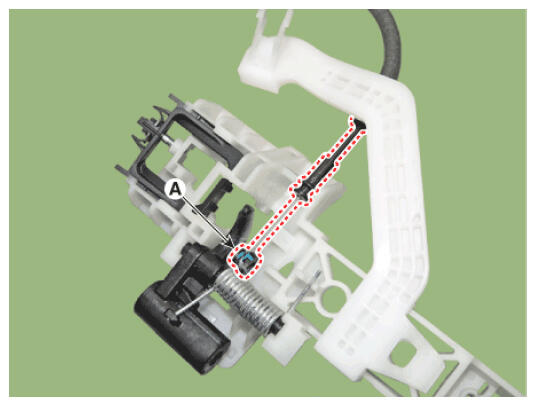

Separate the rear door latch cable (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information

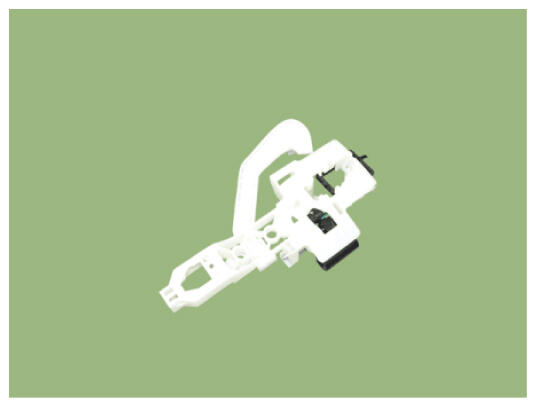

Rear door outside handle base bracket

Courtesy of HYUNDAI MOTOR AMERICA

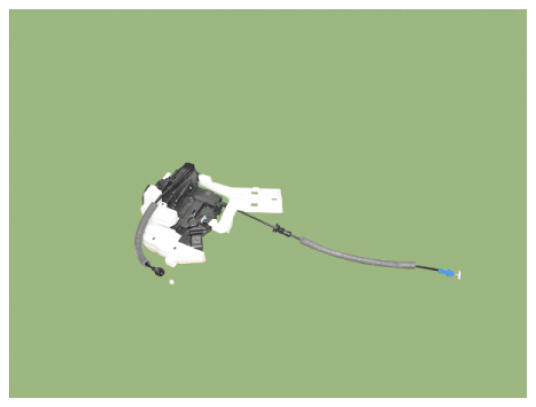

Rear door latch

Courtesy of HYUNDAI MOTOR AMERICA

To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
