Rear Door Inside Handle: Replacement

  1. Remove the rear door trim.

    Refer to Rear Door - "REAR DOOR TRIM ")

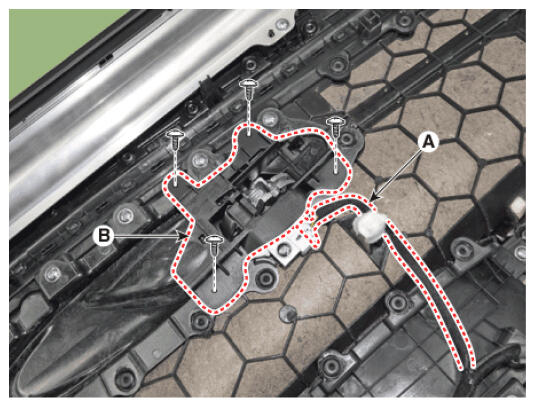

  2. Disconnect the connector (A), loosen the mounting screws and remove the rear door inside handle (B).
    G16855203Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.

    Information

    • Make sure the door locks/unlocks and opens/closes properly.
