[Rear door B pillar frame garnish]

Remove the rear door belt outside weatherstrip.
(Refer to Rear Door - "REAR DOOR OUTSIDE WEATHERSTRIP ")
Remove the rear door trim.
Refer to Rear Door - "REAR DOOR TRIM ")

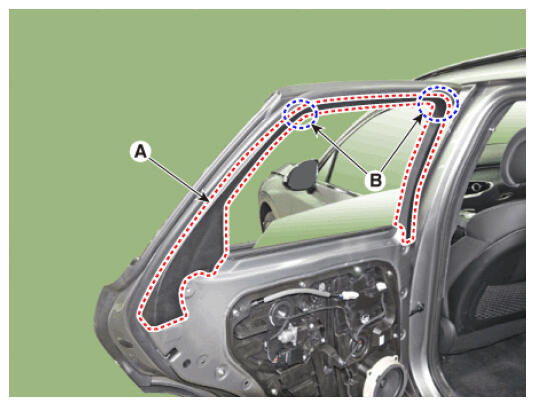

Remove the rear door delta inner cover (A).
CAUTION:
- Be careful not to break the corners (B).
Courtesy of HYUNDAI MOTOR AMERICA

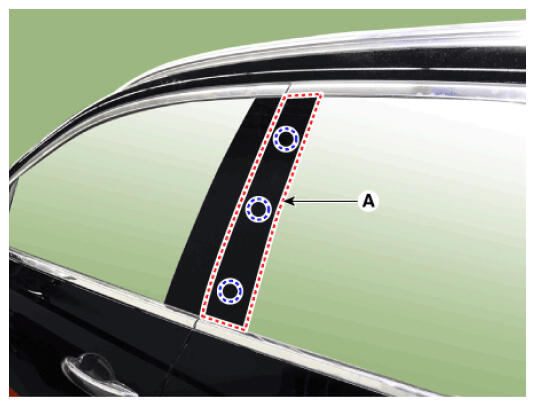

Loosen the mounting screws, remove the rear door B pillar garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- If any parts are damaged after removing the door frame garnish, replace it with a new one.
