Rear Bumper Assembly: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Remove the quarter garnish.
(Refer to Body Side Molding - "QUARTER GARNISH ")

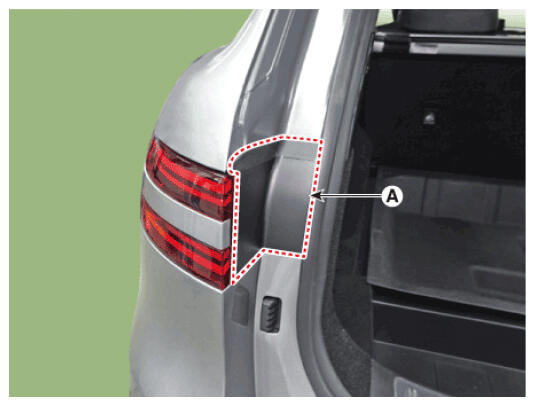

Remove the rear combination lamp cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

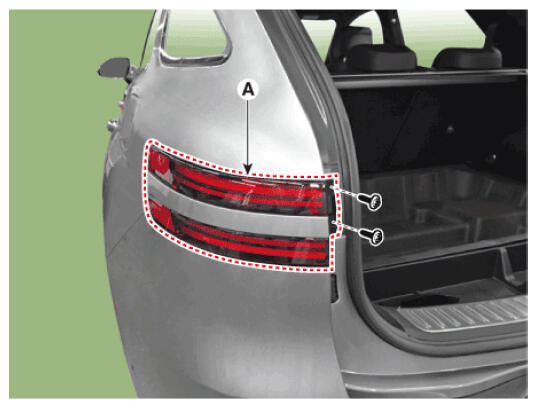

Loosen the mounting screws, remove the rear combination lamp (A).

Courtesy of HYUNDAI MOTOR AMERICA

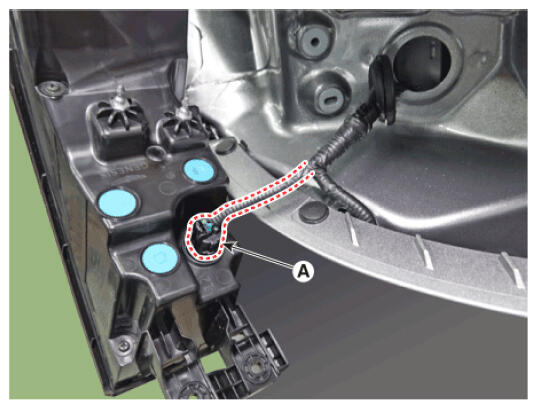

Disconnect the rear combination lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

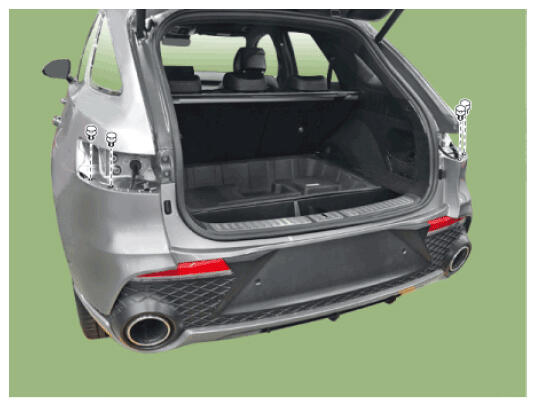

Loosen the rear bumper upper mounting clips.

Courtesy of HYUNDAI MOTOR AMERICA

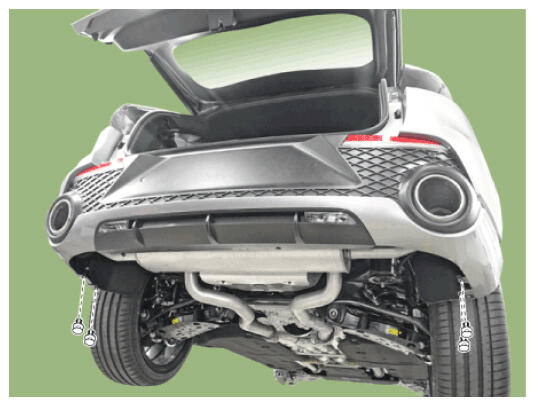

Loosen the rear bumper lower mounting clips.

Courtesy of HYUNDAI MOTOR AMERICA

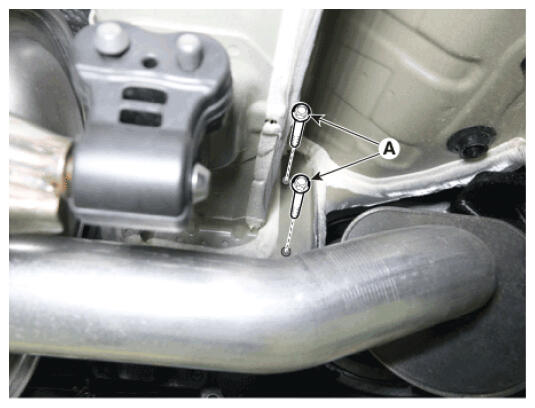

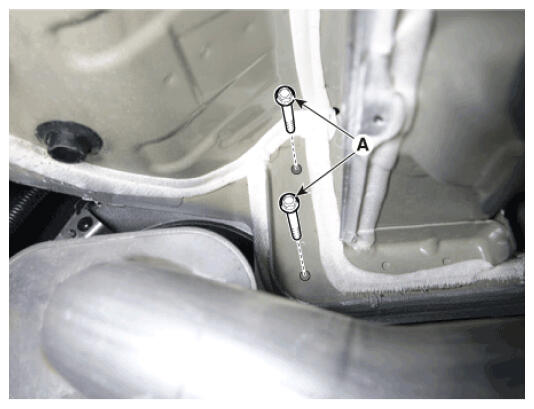

Loosen the rear bumper assembly mounting bolts (A).
Tightening torque:

20.9 - 29.9 N.m (2.1 - 3.1 kgf.m, 15.4 - 22.1 lb-ft)

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

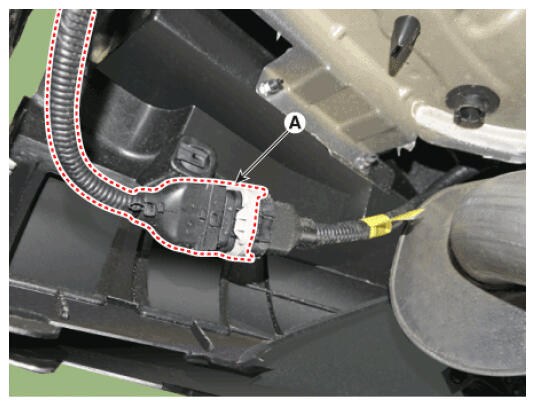

Disconnect the rear bumper main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

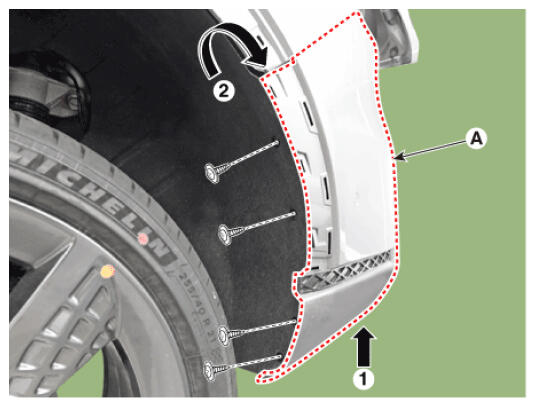

Loosen the mounting screws and retainer on the side of rear bumper (A), detach the side part of rear bumper.
NOTE:
- Be careful not to damage the tabs on the side part of rear bumper.
Courtesy of HYUNDAI MOTOR AMERICA

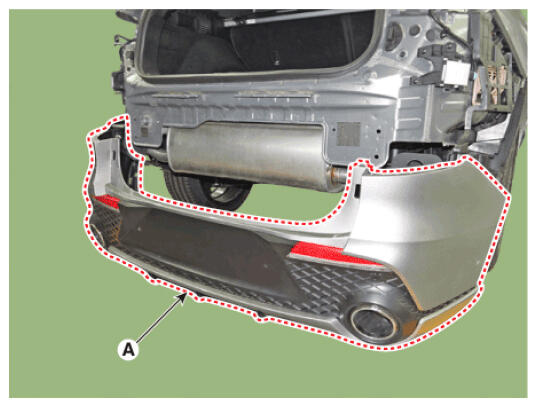

Remove the rear bumper assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
