[Liftgate side trim]

  1. Remove the liftgate upper trim.

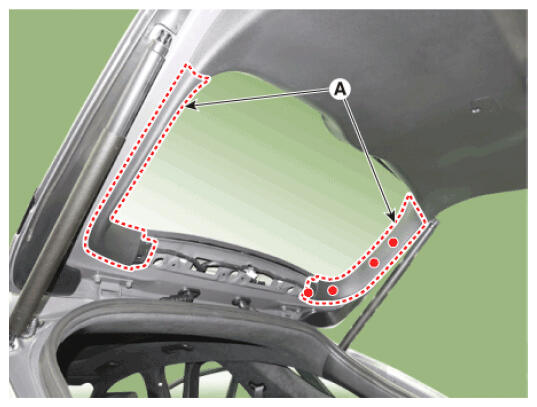

  2. Loosen the mounting screws, remove the side trim (A).
    G16855117Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G16855118Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.

    Information

    • Replace any damaged clips.
