[Liftgate lower trim]

  1. Remove the liftgate side trim.

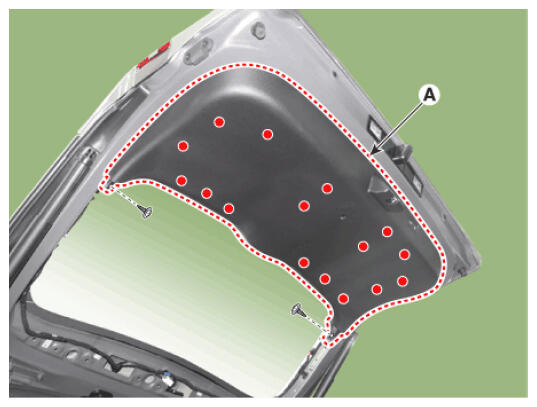

  2. Loosen the mounting screws, remove the Liftgate lower trim (A).
    G16855119Courtesy of HYUNDAI MOTOR AMERICA

    Information

    G16855120Courtesy of HYUNDAI MOTOR AMERICA

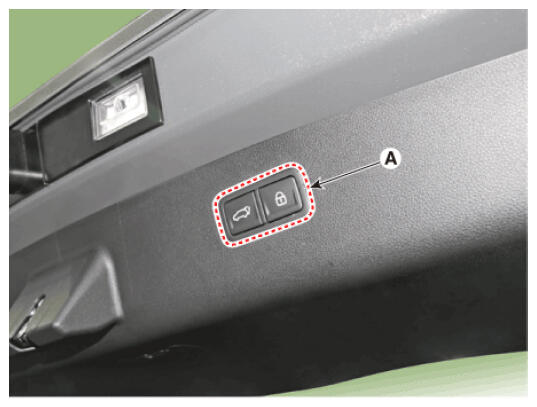

  3. Remove the power liftgate inner switch (A).
    G16855121Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • When removing the power liftgate inner switch, press the hook from the inside so as not to damage the liftgate trim before removing it.

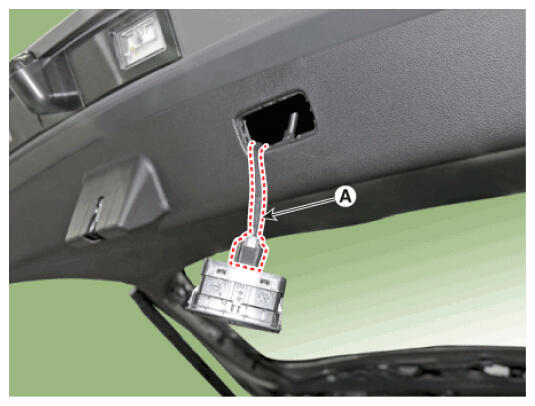

  4. Disconnect the power Liftgate inner switch connector (A).
    G16855122Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse removal procedure.

    Information

    • Replace any damaged clips.
