Hood Weatherstrip: Replacement: [Ctr]

  1. Remove the hood weatherstrip [LH, RH].

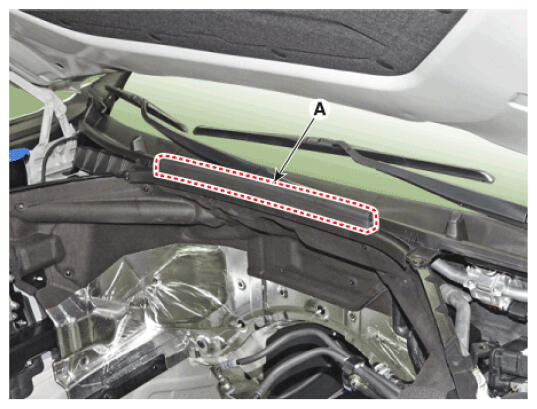

  2. Remove the hood weatherstrip [CTR] (A).
    NOTE:
    • Be careful not to scratch the hood weatherstrip.
    G16855109Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.
